868HEH30 8mm Hammerlock + 6mm Hook + 8mm Hammerlock for Trailer Safety Chain/Caravan Towing
868HEH30 8mm Hammerlock + 6mm Hook + 8mm Hammerlock for Trailer Safety Chain/Caravan Towing
868HEH30 8mm Hammerlock + 6mm Hook + 8mm Hammerlock for Trailer Safety Chain/Caravan Towing
hook & hammerlock assembly
868HEH30 8mm Hammerlock + 6mm Hook + 8mm Hammerlock for Trailer Safety Chain/Caravan Towing

868HEH30 8mm Hammerlock + 6mm Hook + 8mm Hammerlock for Trailer Safety Chain/Caravan Towing

Regular price
$55.90
Sale price
From $49.90
Tax included. Shipping calculated at checkout.

Hammerlock+ Hook on Chain

+ Hammerlock on Tow Bar

Suit for chain 4177-25. This setup is designed for trailer caravans or campers with an ATM of 2500kg or less.

Code Number: 868HEH30

Hammerlock size:

7/8mm WLL 2000kg, Breaking Force 8000kg

Eye Hook size:

6mm WLL 1120kg, Breaking Force 4480kg

Each kit contains:

  • 4pcs 7/8mm Hammerlocks (Hammer pin included)
2pcs hammerlocks for hooks
2pcs hammerlocks for tow bar
  • 2pcs 6mm eye hooks

The overall Breaking force is 4480kg as A chain is as strong as the Weakest Link

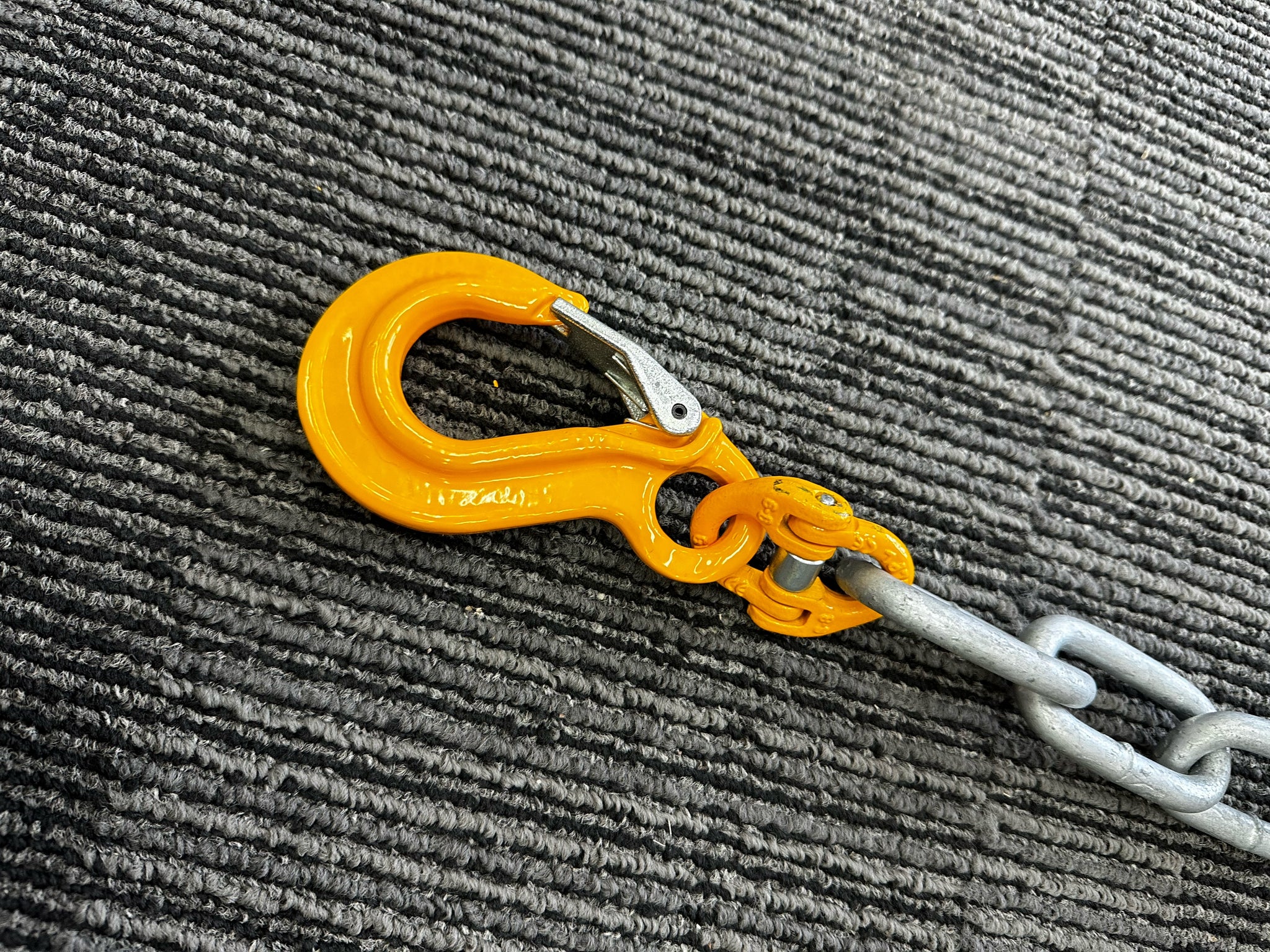

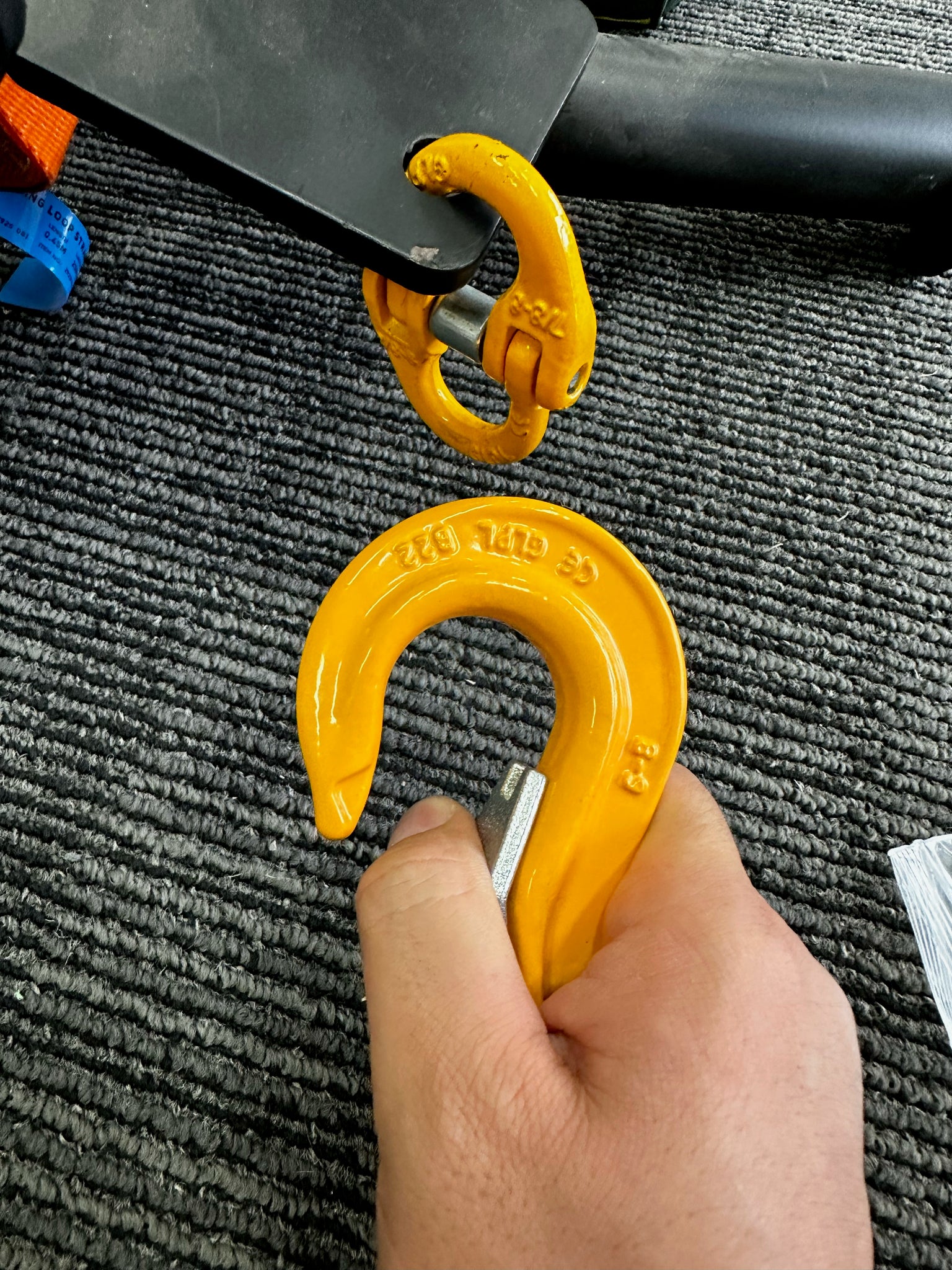

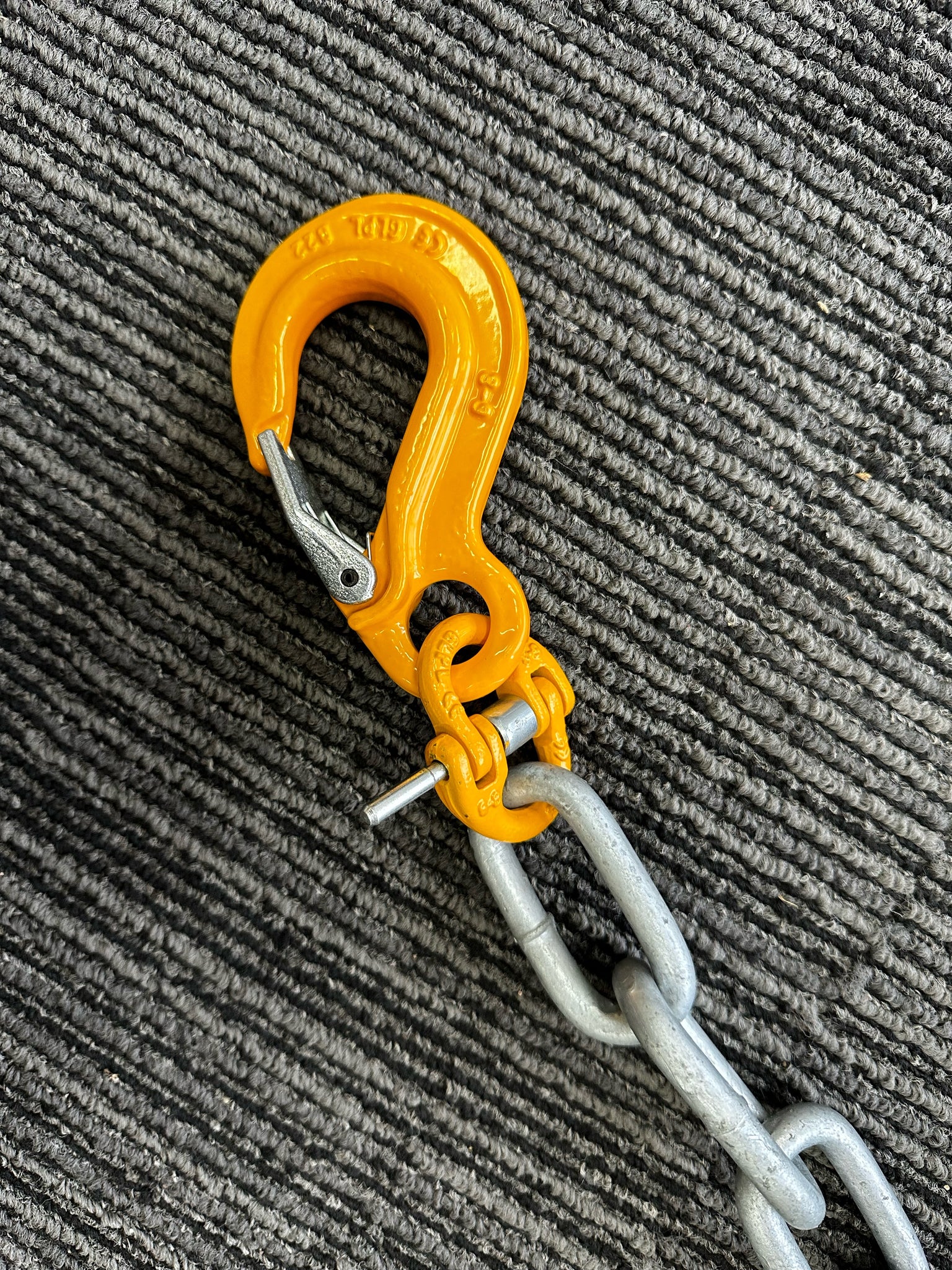

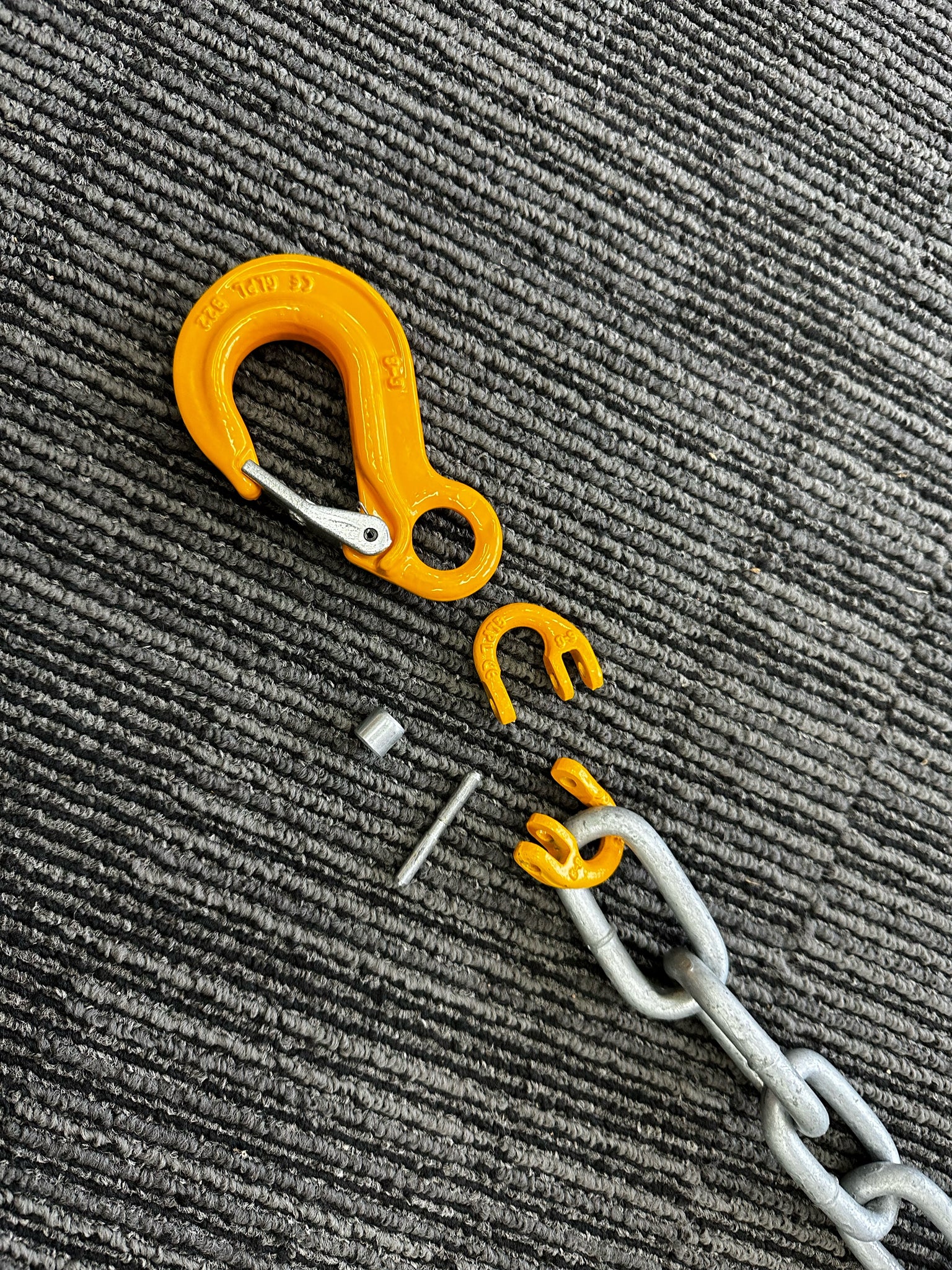

See the picture for how they are connected.

Max 2900KG Aggregate Trailer Mass (ATM)

Suit for Caravan/trailer/Camper up to 2900kg!

How to and Why – Tagged "Hammerlock"– George4x4 4WD Recovery Gear

FEATURES:

  • 2 hammerlocks on Tow Bar only.
  • Hook on your Tow Chain
  • All Meet Grade 80 standards with figures tested over 20000 times
  • AS 3776 Compliant
  • Made of G80 Steel
  • Test Certificates Available Upon Request
  • Marked With Chain Size / Grade / and Manufacture Code (tracking code)
  • Item # indicated in the dimension figures

Reference information for trailer chain (from official website of Government QLD/NSW/WA/SA/etc...)
