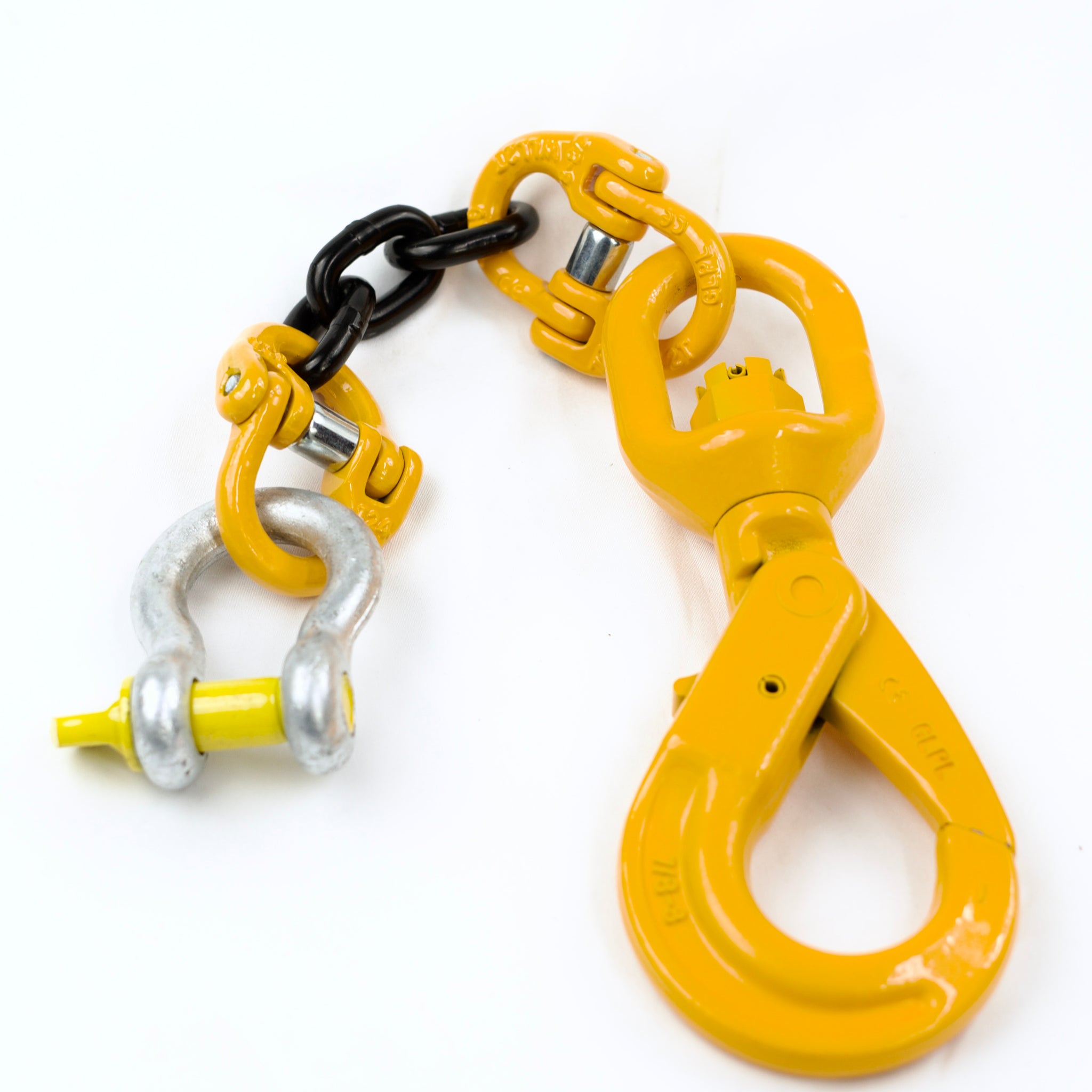

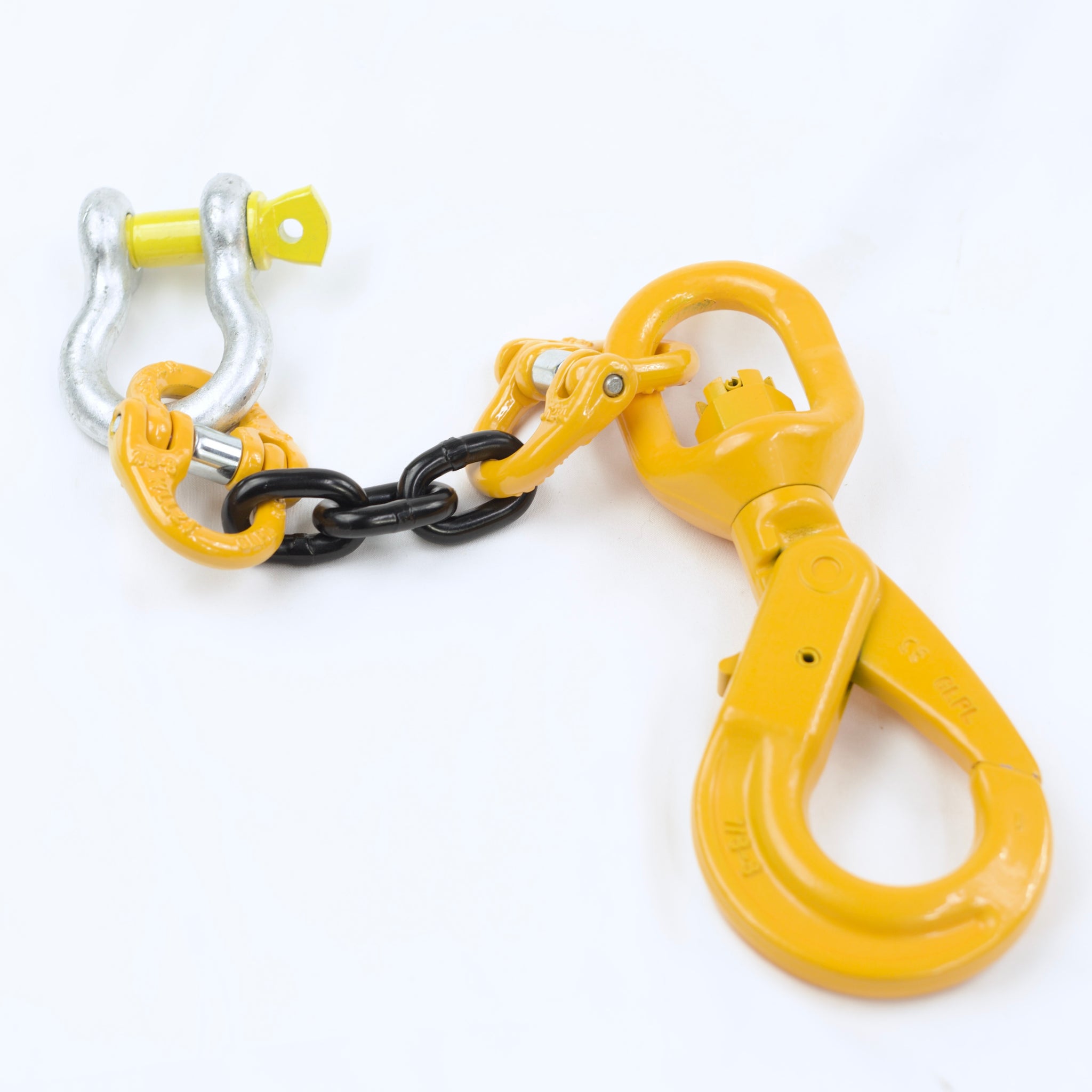

Grade 80 10mm Loader & Excavator Swivel Hook Assembly – WLL 2T
NOTE: The swivel hook is fitted with ball bearings and can rotate under full load.
Includes:
-
1 × 8mm Grade 80 Swivel Self-Locking Hook with ball bearing
-
2 × 8mm Grade 80 Hammerlock Connectors
-
3 × 8mm Grade 80 Chain Links
-
1 × 2T Bow Shackle
-
1 × ID Tag – Certified and assembled to Australian Standard
-
Working Load Limit: 2 tonnes
Swivel Hook Assemblies are commonly used in civil construction commonly on excavators , Loader & Forklift. The 3 links Chain Allows the hook and shackle extra flexibility and movement, stopping the likelihood of the swivel hook catching against the excavator bucket and side loading the hook.
All hooks are Grade 80 and comply with AS 3776 standards.
The shackle is Grade S, with a 6:1 safety factor.
The chain is Grade 80 lifting chain, rated with a 4:1 safety factor.
