Grade 80 13mm Excavator Swivel Hook Assembly – WLL 5.3T NOTE: The swivel hook is fitted with ball bearings and can rotate under full load.

G80 13mm Swivel Hook Assembly with Shackle Excavator, Lifting, Rigging, Crane, Civil

$229.00
From $210.00
Tax included. Shipping calculated at checkout.

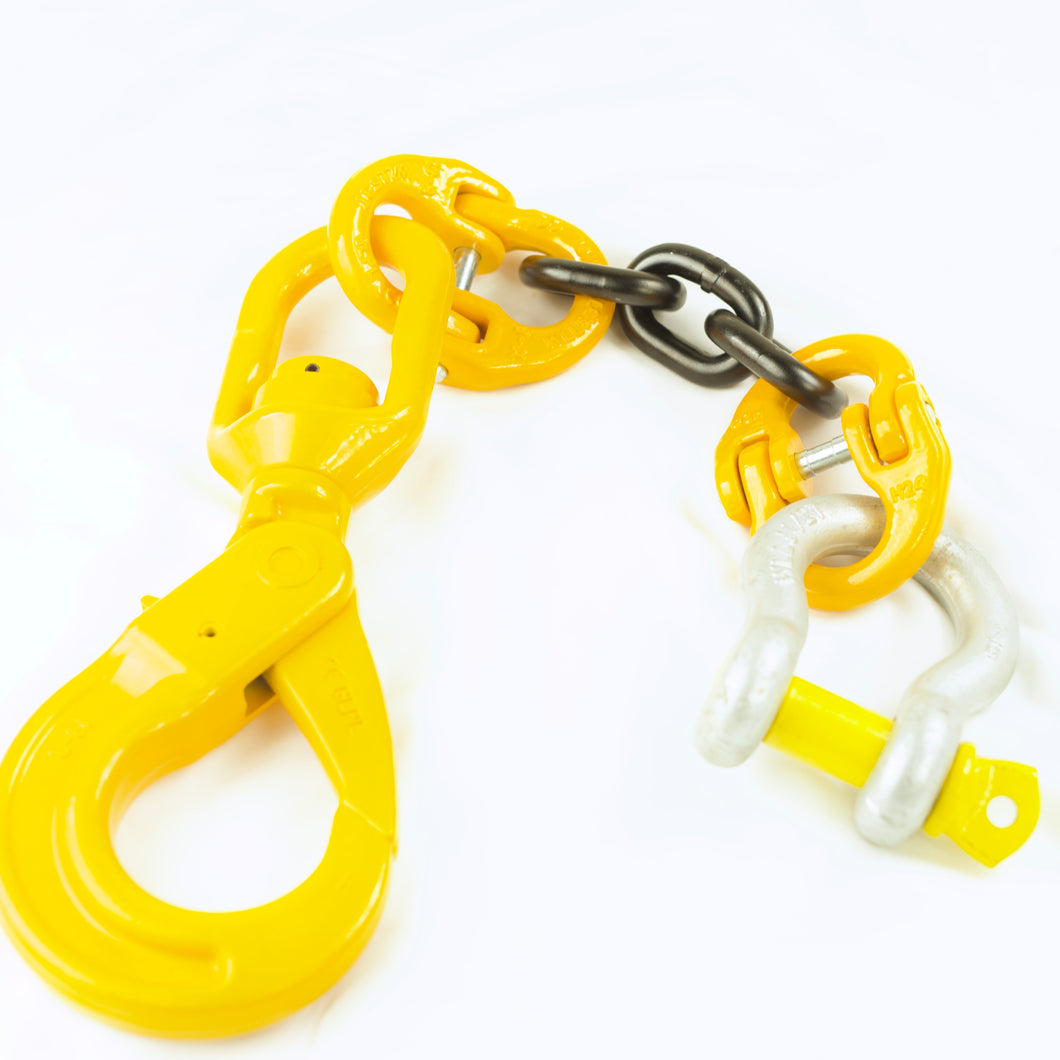

Grade 80 13mm Loader & Excavator Swivel Hook Assembly – WLL 5.3T

NOTE: The swivel hook is fitted with ball bearings and can rotate under full load.

Includes:

  • 1 × 13mm Grade 80 Swivel Self-Locking Hook with ball bearing

  • 2 × 13mm Grade 80 Hammerlock Connectors

  • 3 × 13mm Grade 80 Chain Links

  • 1 × 6.5T Bow Shackle

  • 1 × ID Tag – Certified and assembled to Australian Standard

  • Working Load Limit:  5.3tonnes

Swivel Hook Assemblies are commonly used in civil construction commonly on excavators , Loader & Forklift. The 3 links Chain Allows the hook and shackle extra flexibility and movement, stopping the likelihood of the swivel hook catching against the excavator bucket and side loading the hook.

All hooks are Grade 80 and comply with AS 3776 standards.
The shackle is Grade S, with a 6:1 safety factor.
The chain is Grade 80 lifting chain, rated with a 4:1 safety factor.
