DSB24 GEN2 Dingo Snatch Block + 60mm Narrow Tree Trunk Protector Combo
Direct Connection — No Shackle Required
Push & Twist System Captive Pin. Direct Connection. No Loose Parts.

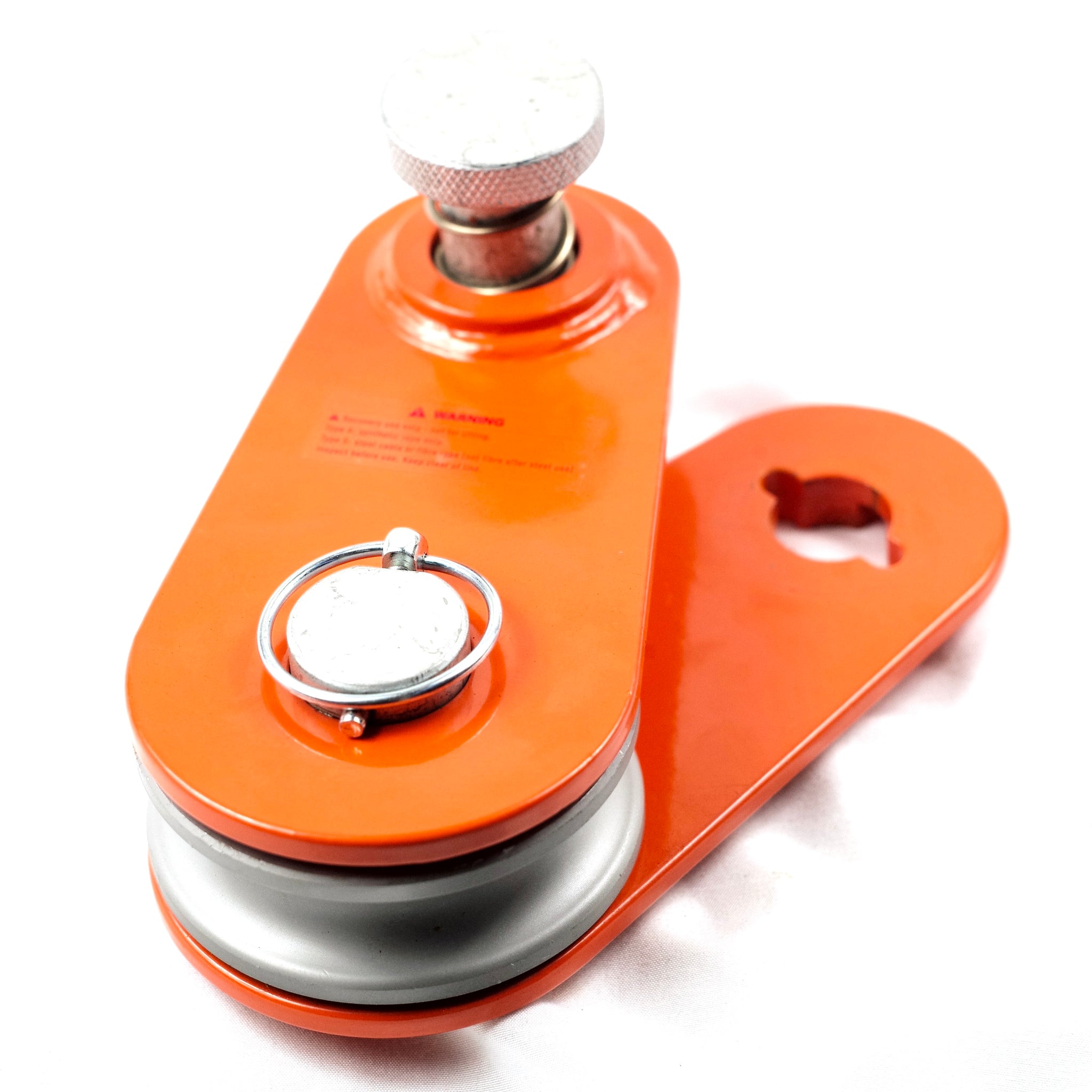

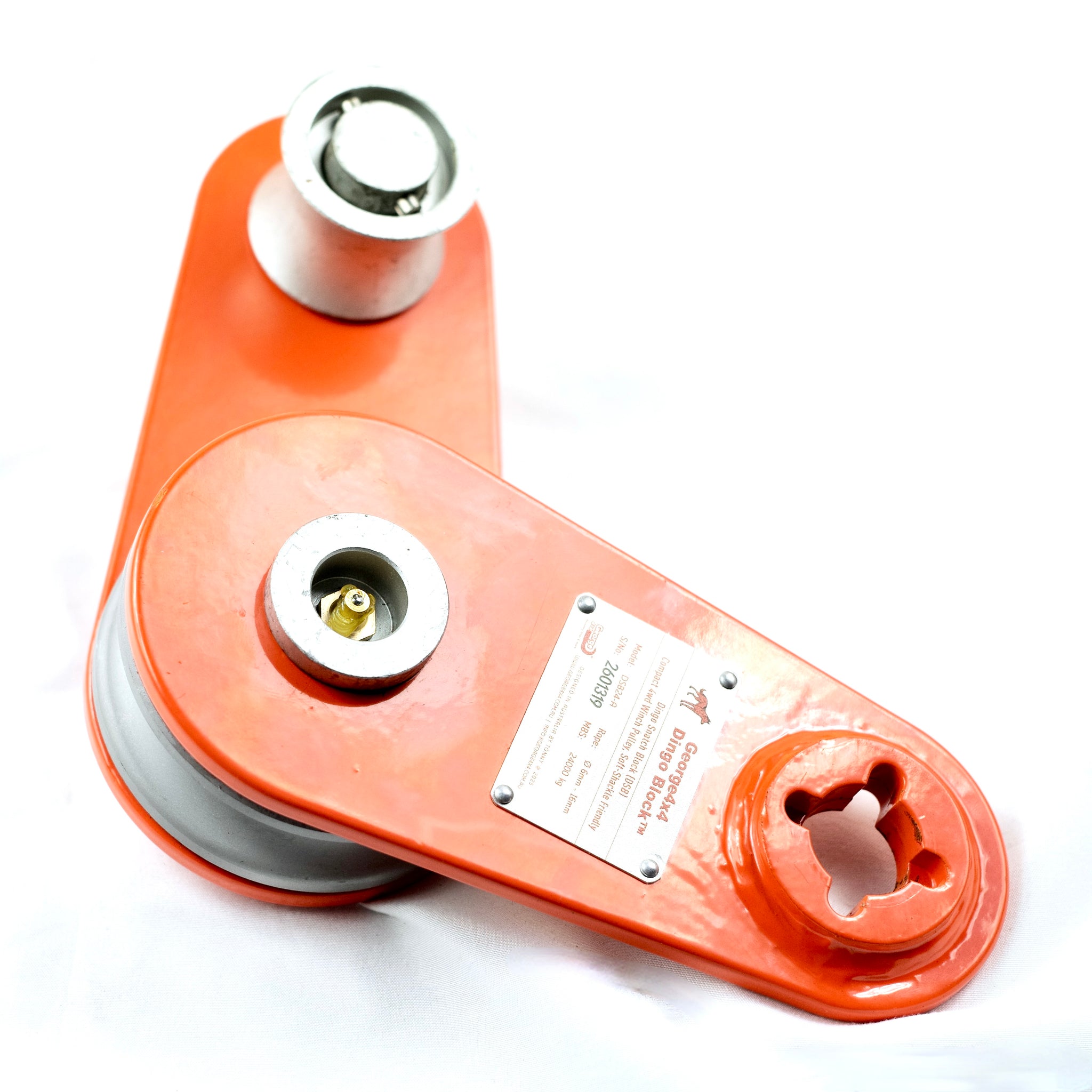

The DSB24 GEN2 Dingo Snatch Block is a compact, heavy-duty winch recovery block designed for quicker setup, fewer loose parts and greater connection flexibility.
The GEN2 Push-and-Twist captive pin stays attached to the block, reducing the risk of losing pins or retaining clips in mud, sand or grass. Simply push the pin in and rotate it 90 degrees to lock it securely into position.
Its wider connection point allows the block to connect directly to compatible soft shackles, a 60mm Narrow Tree Trunk Protector or a standard 4.75-tonne bow shackle.
The enclosed design keeps your winch rope securely contained inside the block, making it ideal for double-line pulls, winch redirects and general 4WD recovery applications.
What’s Included
- 1 × DSB24 GEN2 Dingo Snatch Block with alloy sheave-for synthetic winch rope only

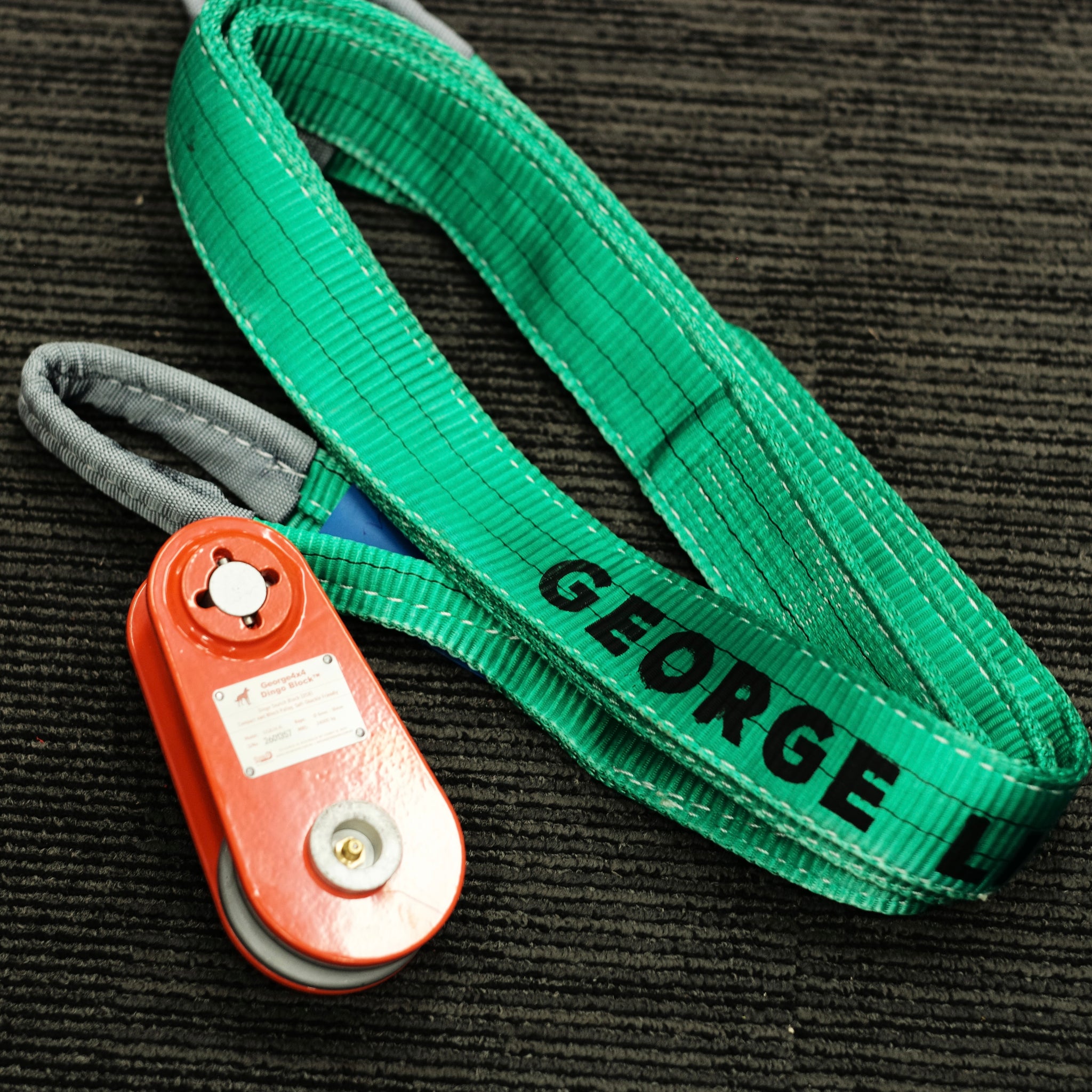

- 1 x 60mm Narrow Tree Trunk Protector — available in 3m, 4m, 5m or 6m
Highlights
- 24,000kg minimum breaking strength
- Push-and-Twist 90° captive pin
- No loose pin or retaining clip
- Keeps the winch rope securely contained
- Direct connection to compatible soft shackles
- Direct connection to the 60mm Narrow Tree Trunk Protector
- Compatible with a standard 4.75-tonne bow shackle
- Bushed sleeve for smooth sheave rotation
- Minimum connection contact diameter of approximately 31.5mm
- Approximately 32mm connection opening
- Compact and easy to carry
- Designed for synthetic winch rope
More Connection Options. Fewer Loose Parts.
Traditional snatch blocks often require separate pins, clips and additional shackles. The DSB24 GEN2 reduces unnecessary hardware while providing several practical connection options.
Connect it directly to a compatible soft shackle or Narrow Tree Trunk Protector, or use it with a standard steel bow shackle when required.
Less gear. Fewer connection points. A simpler recovery setup.
Built for Real Recovery.
