DSB24 GEN2 Dingo Block™ -The Next Generation of Dingo Block.
Keeps Your Winch Rope Where It Belongs.Unlike a recovery ring, the enclosed rotating sheave helps prevent rope flip-out when tension or rope angles change.
24T MBF • Captive Pin • Direct Soft Shackle Connection
Key Features

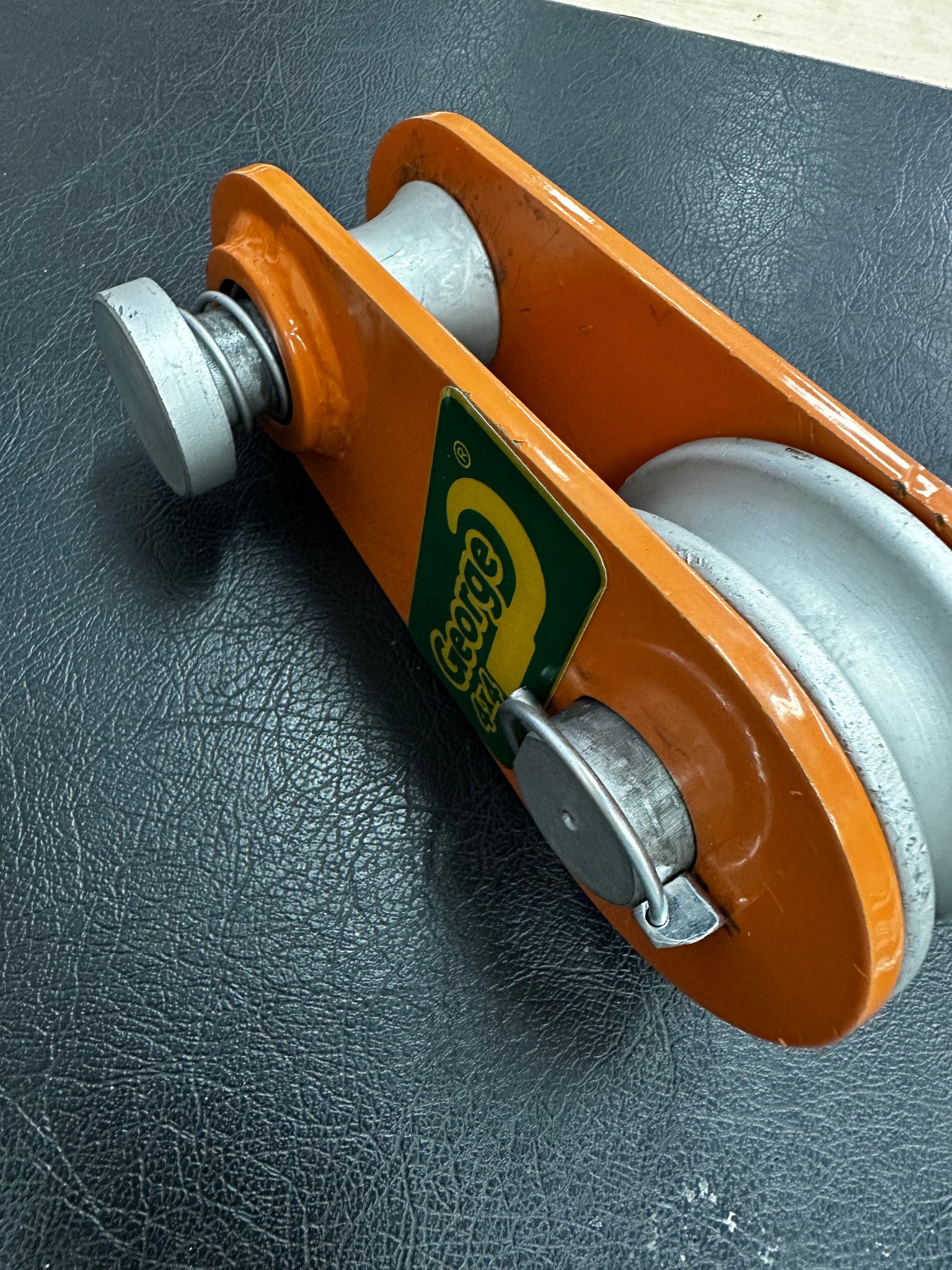

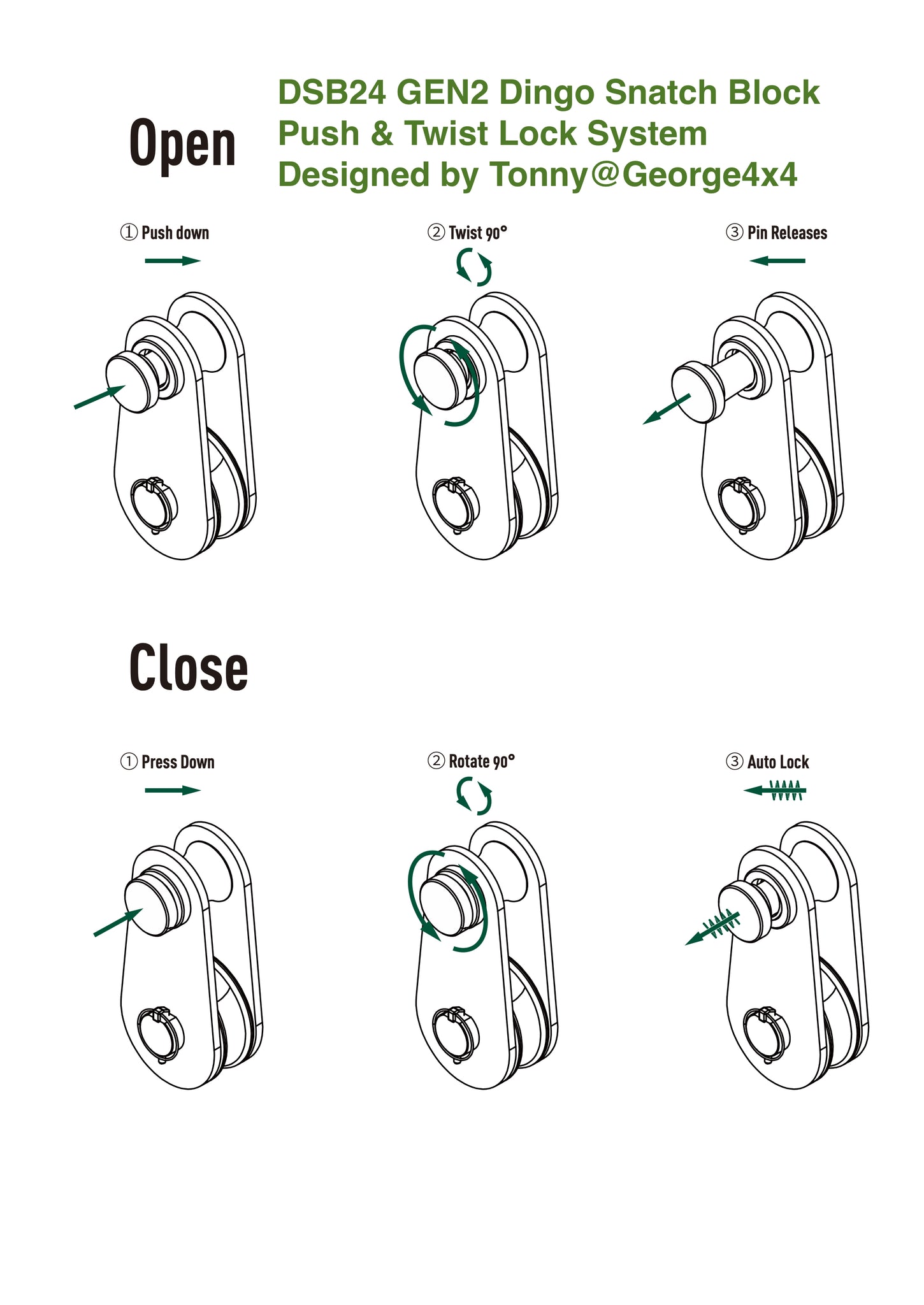

Push & Twist Captive Pin
No loose pins.
No clips.
Simply push, twist and recover.
The captive locking system keeps the pin securely attached to the block while allowing quick operation even with gloves.
Why not just use a recovery ring?
| Recovery Ring | Dingo Block |
|---|---|
| Rope can leave the ring when tension drops | Enclosed sheave helps keep rope contained |
| Slides against the rope | Sheave rotates with the rope |
| Usually needs another connector | Direct soft shackle or Narrow Tree Saver connection |
Why Choose the DSB24 GEN2?
Keeps Your Winch Rope Where It Belongs
Unlike an open recovery ring, the Dingo Block uses an enclosed rotating sheave to help keep the winch rope contained when the load, direction or rope angle changes.
No Loose Pins or Clips
The Push & Twist captive pin stays attached to the block, so there are no separate pins, clips or small parts to drop or lose during a recovery.
Fewer Connection Points

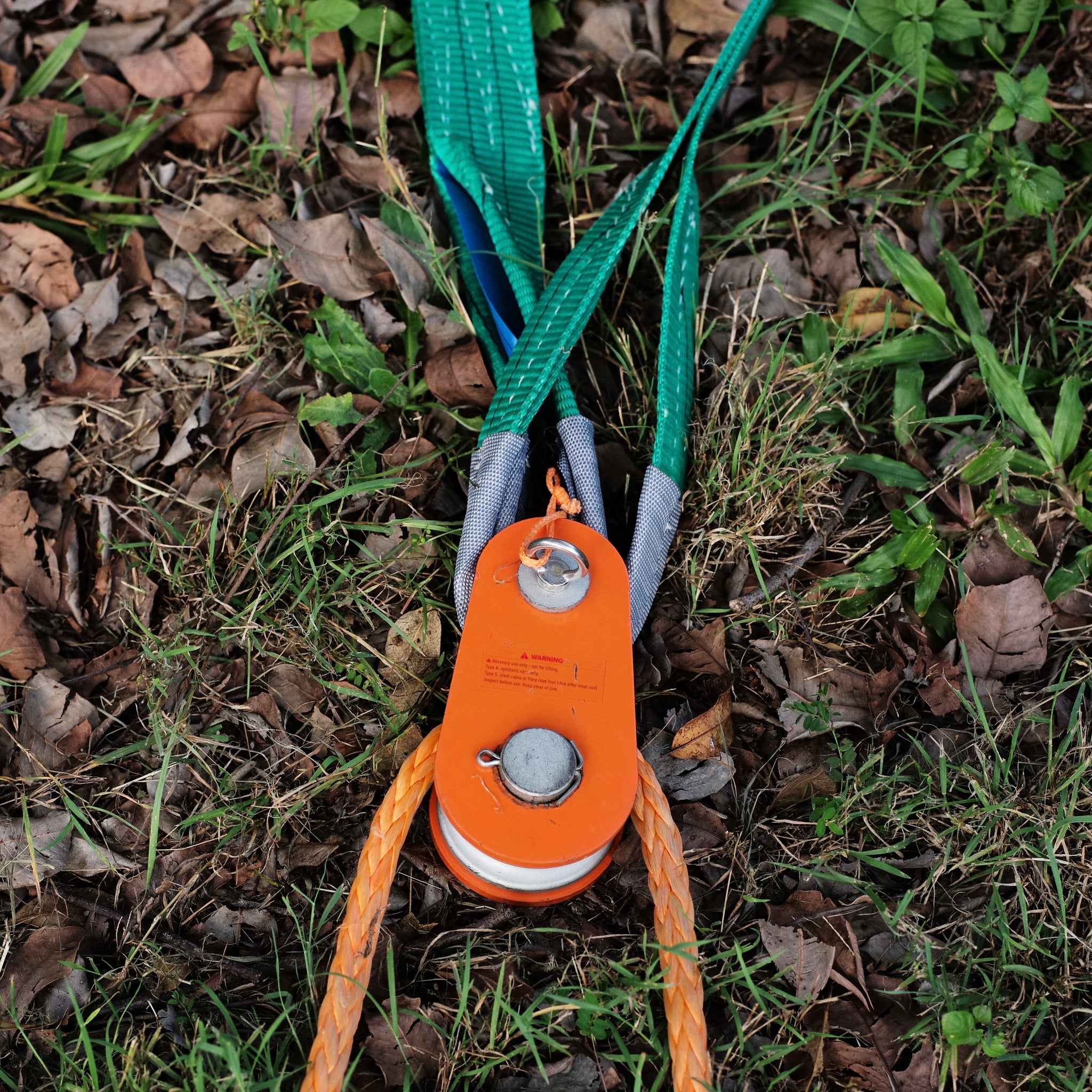

Connect the Dingo Block directly to a soft shackle or our Narrow Tree Saver — no extra bow shackle required.
24,000 kg Minimum Breaking Force

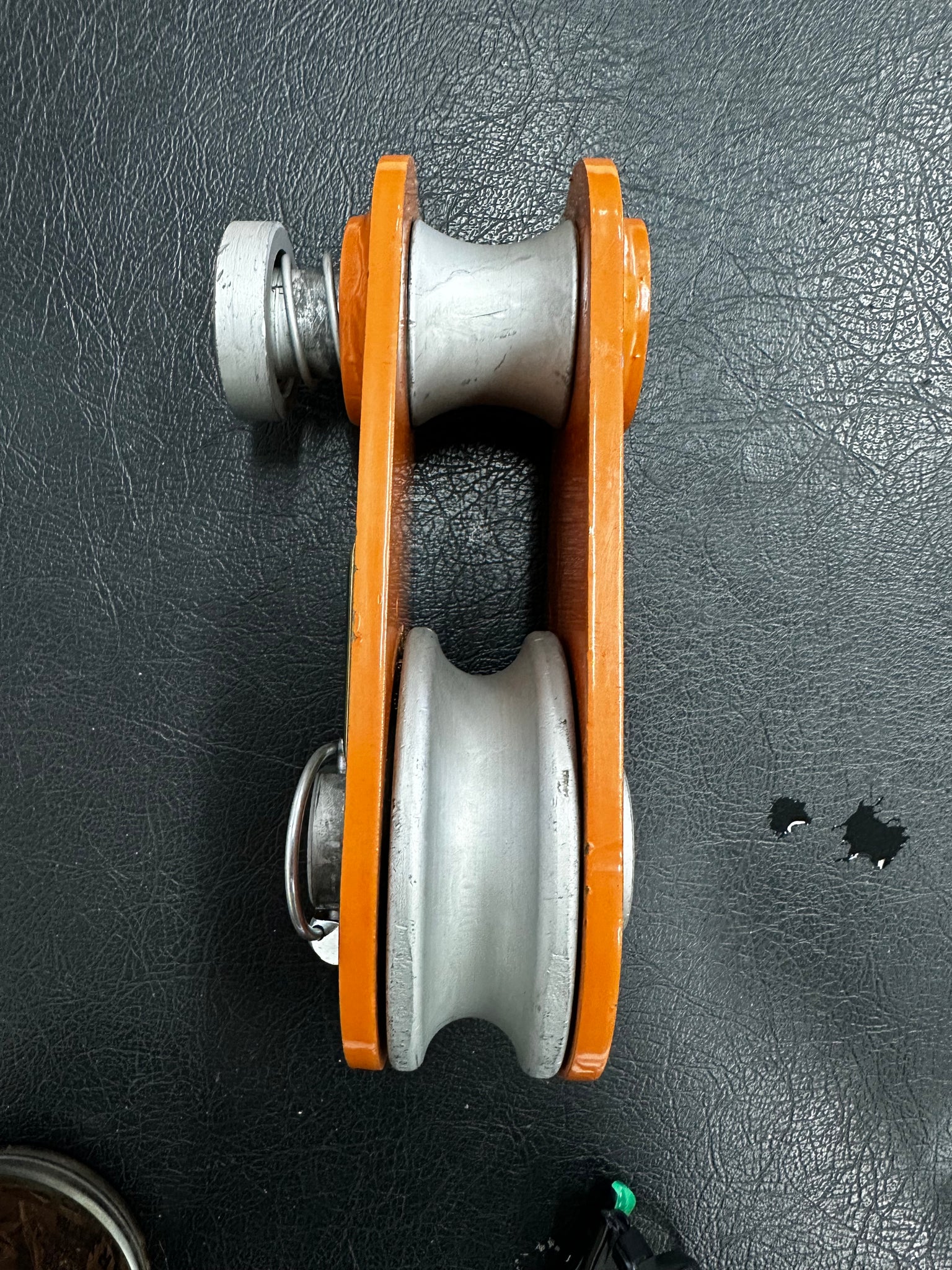

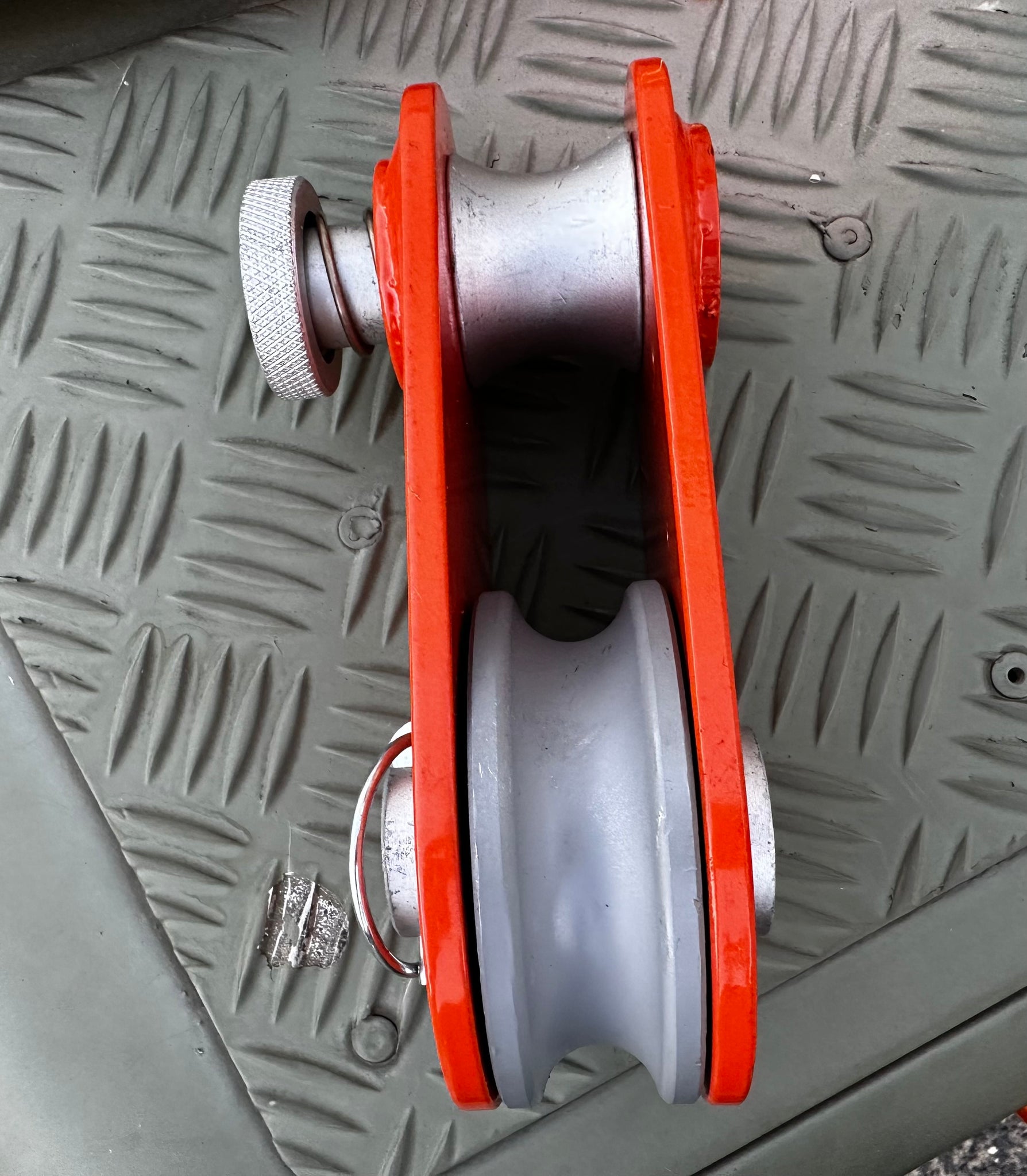

85 mm Rotating Sheave
Designed for Synthetic Winch Rope
Less gear. Fewer connection points.
Frequently Asked Questions
What makes the DSB24 GEN2 different?
The DSB24 GEN2 features our Push & Twist Captive Pin, a larger 85mm sheave and an improved rope path designed specifically for modern synthetic rope recovery systems.
Can I use soft shackles?
Absolutely.
The DSB24 GEN2 was designed around soft shackles and synthetic winch rope.
Is there a steel cable version?
Yes.
A steel sheave version is available for steel winch cable
What does MBF mean?
MBF (Minimum Breaking Force) is the minimum load at which the product is designed to break under testing conditions.
Is it suitable for synthetic winch rope?
Yes. The Alloy Wheel Version is designed for synthetic winch rope. For steel cable applications, simply choose the Steel Wheel Version.
⚠ Do not switch back to synthetic rope after using steel cable, as embedded particles may damage fibre rope.
Can it connect directly to a tree trunk protector?
Yes.
The DSB24 GEN2 is designed to work directly with our Narrow Tree Trunk Protector, helping reduce unnecessary connection points.
What makes it different from a winch ring?
Winch rings rely on friction.
The Dingo Block rotates with the rope, helping reduce heat build-up and keeping the line more contained when angles change.
What size winch is it suitable for?
The DSB24 GEN2 is suitable for most common 4WD winches, typically ranging from 5,000 lbs to 14,000 lbs.

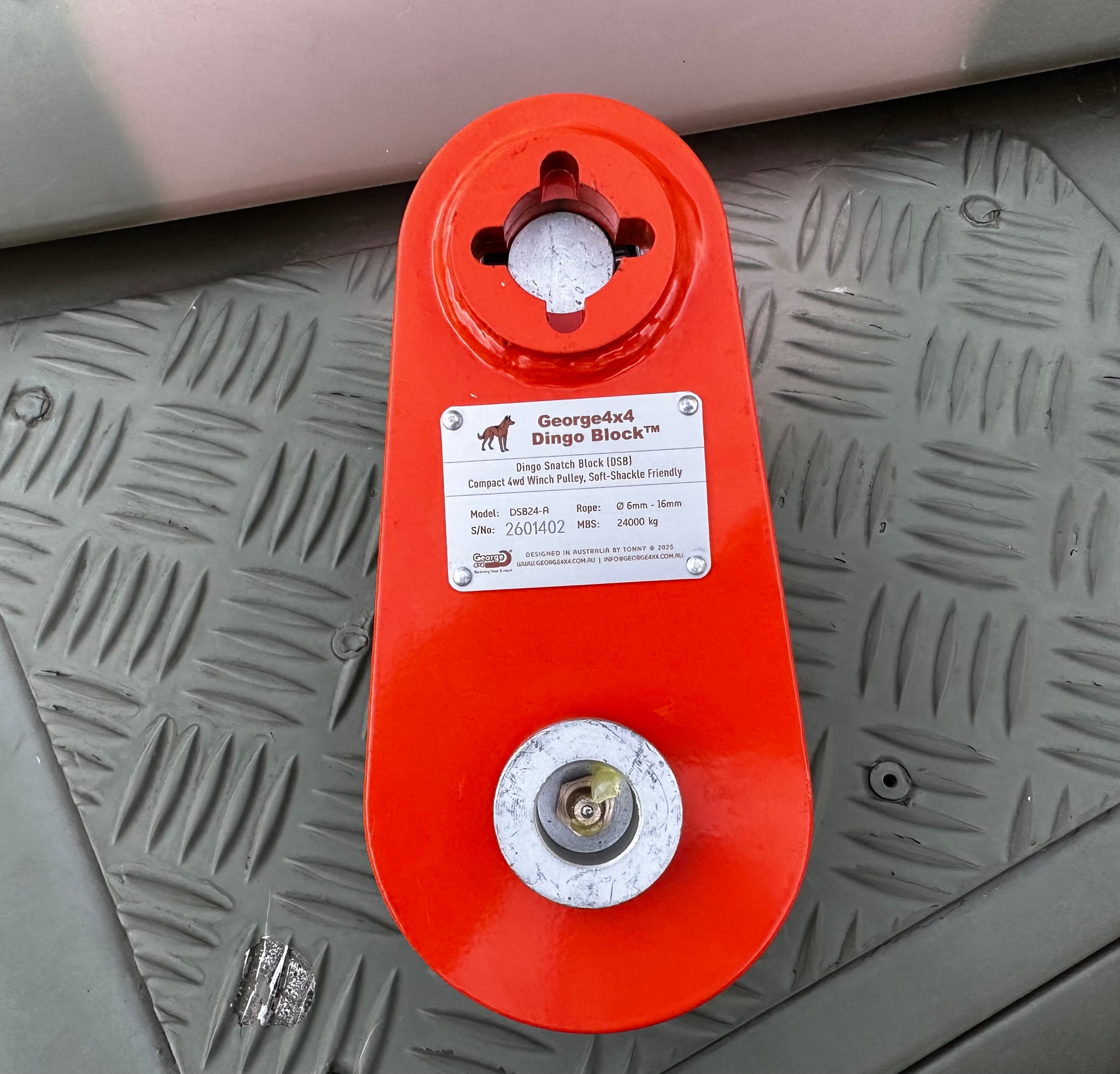

Specifications
| Specification | Details |
|---|---|
| Model | DSB24 GEN2 |
| MBF Rating | 24,000kg |
| Sheave Diameter | 85mm |
| Compatible Rope | 6–18mm Synthetic Rope |
| Steel Cable Version | Available |
| Pin Type | Push & Twist Captive Pin |
| Designed In | Australia |
Complete Your Recovery Kit
Pair the DSB24 GEN2 with:
- George4x4 Soft Shackles
- Bridle Ropes
- Winch Extension Ropes
- Tree Trunk Protectors
- EZFit Recovery Hitch
- Recovery Dampers
Build a complete recovery system with gear designed to work together
Always ensure all recovery equipment in your system is correctly rated and used in accordance with safe recovery practices.

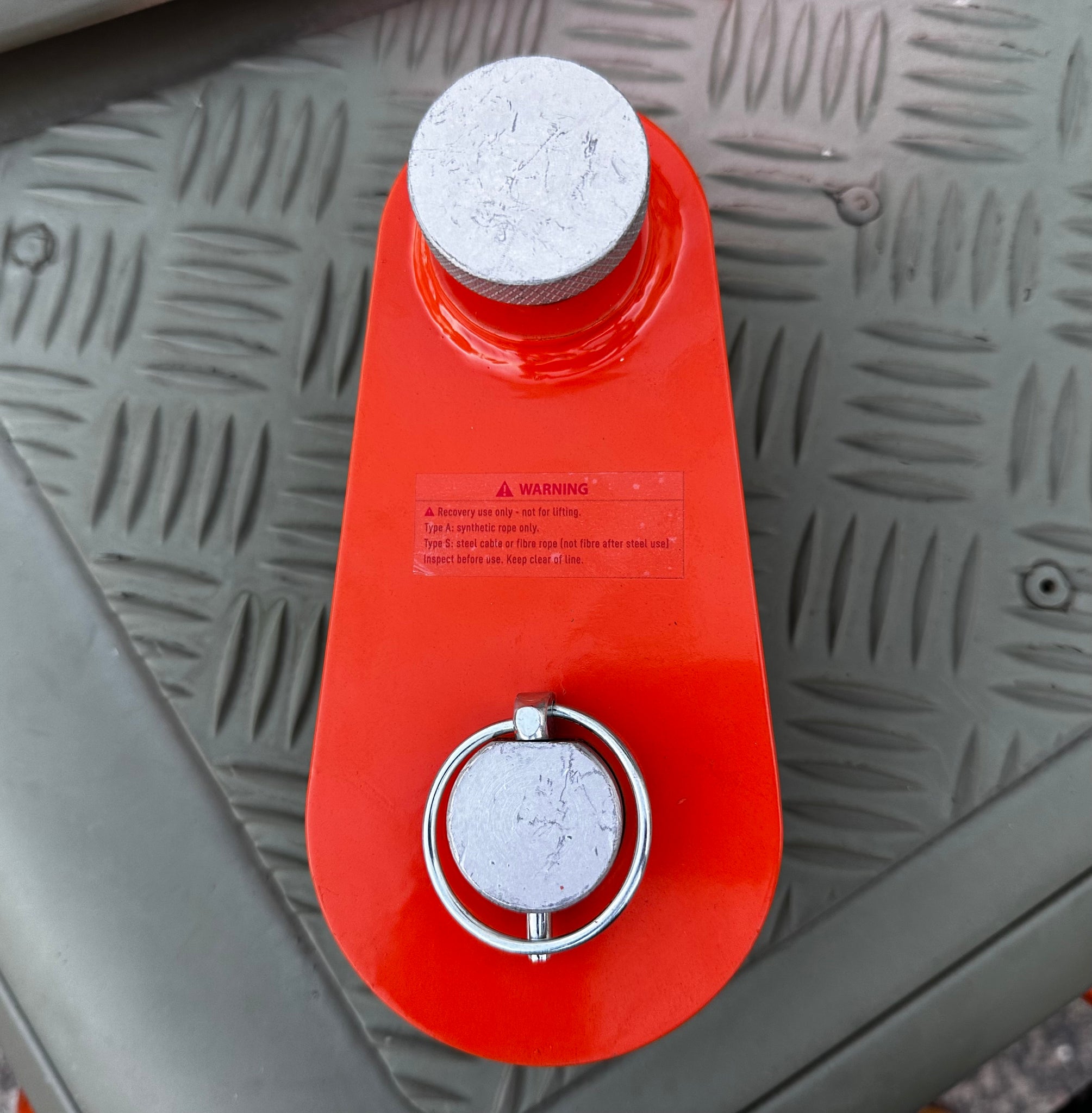

DSB24 GEN2 VS DSB22
The DSB24 GEN2 builds on the proven DSB22 with a secure Push & Twist captive locking system, a larger body for easier handling, and improved serviceability.
