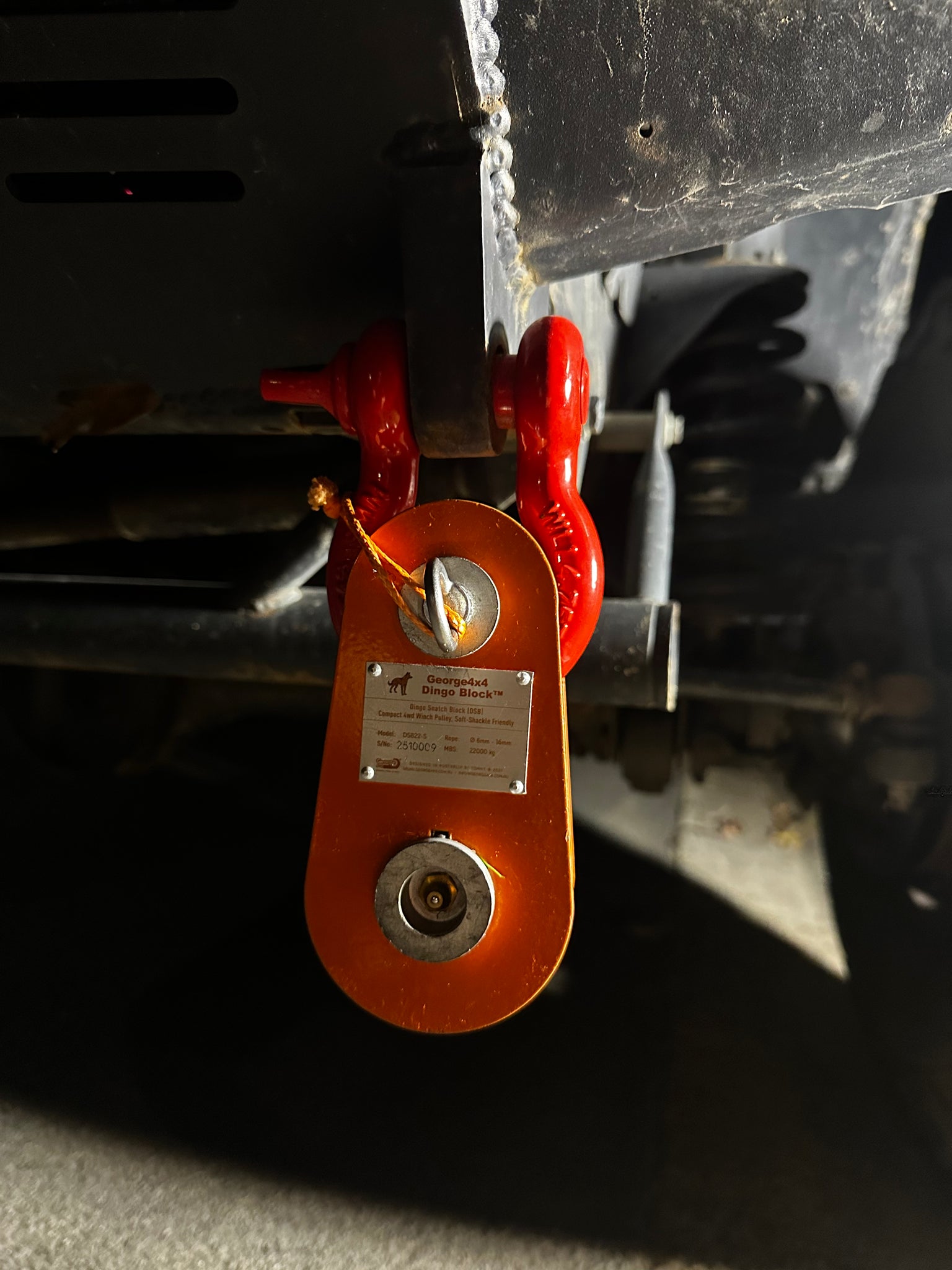

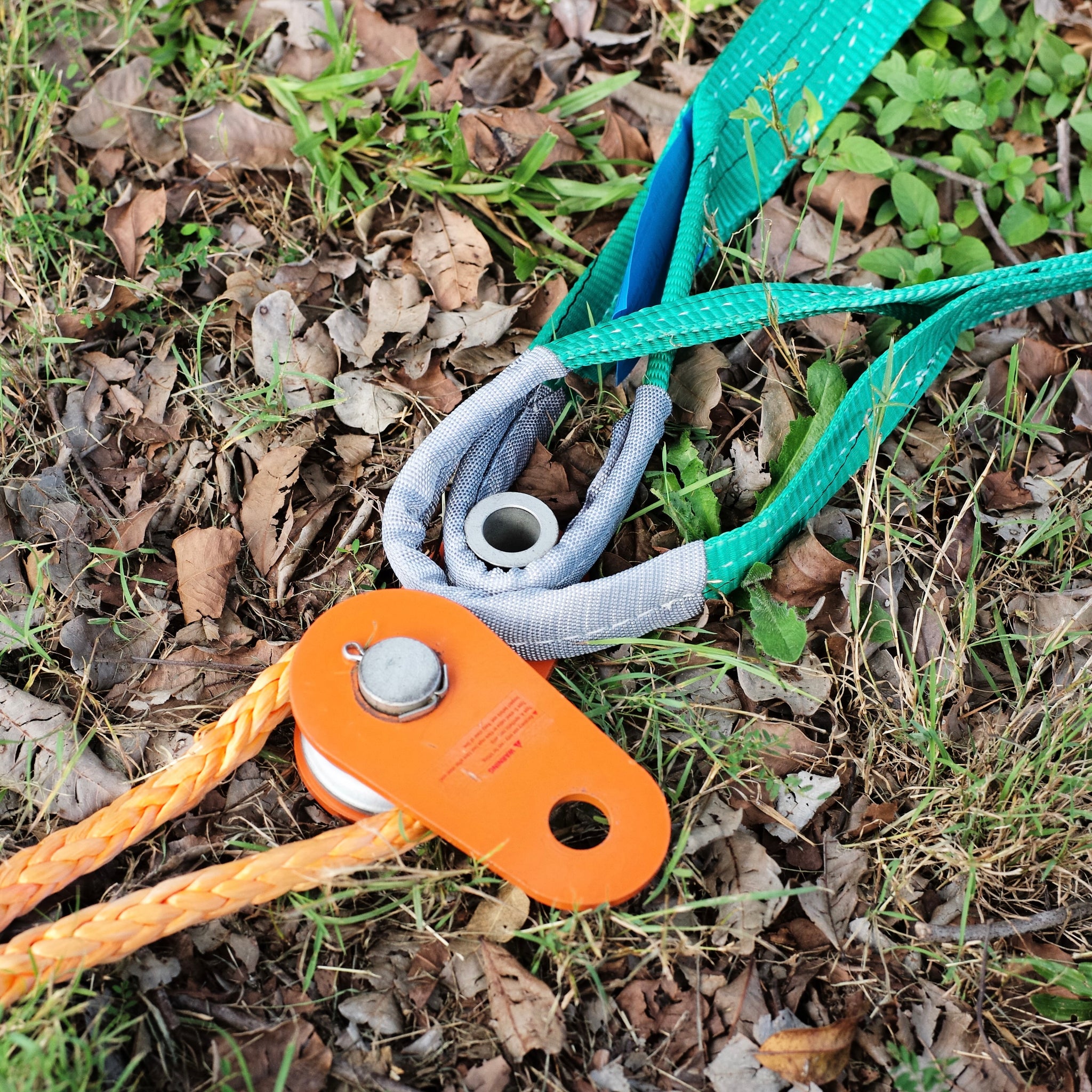

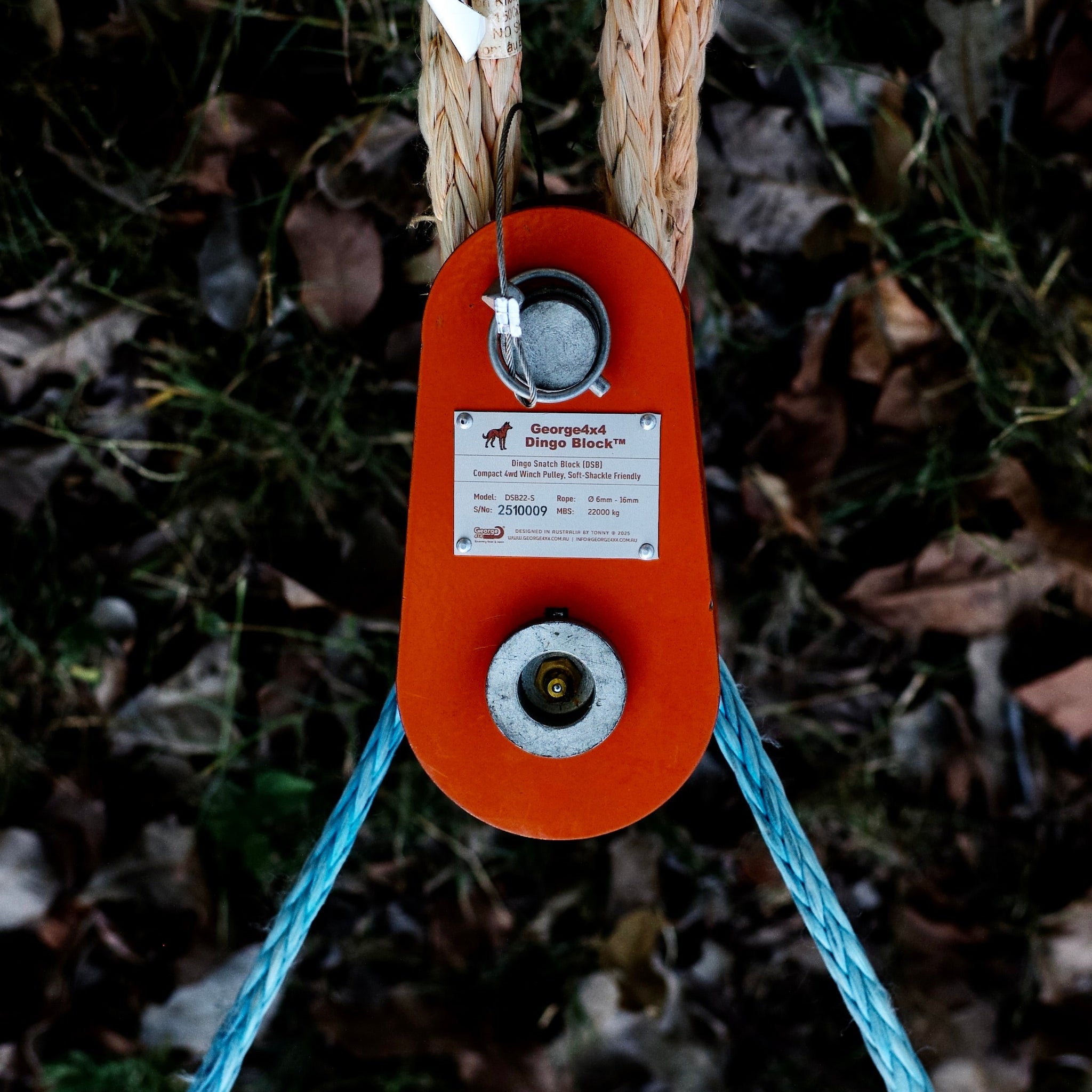

Dingo Snatch Block — DSB22

Predictable rope control when load and angles change — no flip-out, no slip-out.

Quick Answers

• Rotating wheel Reduces friction & Heat on long Pulls
• Designed & Tested in Australia for real Recoveries.

*Direct connection to recovery points (size permitting)

*Direct connection to our NARROW TREE TRUNK Protector

*Direct connection to steel shackles

   Compatibility: Synthetic rope & soft shackles (steel cable via DSB22-S)

Rating: 22T MBL — suits most 8,000–13,500 lb winches

Real recoveries aren’t always straight or perfectly set up.

When load builds and releases, and angles shift under tension, rope behaviour becomes harder to control.

The Dingo Block was designed to keep the line contained and predictable in those moments — helping prevent flip-out and reducing unnecessary heat during long or slow winch pulls.

“What our customers say”
• “No more rope flip-out in tricky angles”
• “Smooth pulls even during load changes”

Why choose the Dingo Block?

• Lighter than traditional steel snatch blocks
• More controlled than basic winch rings
• Rotating wheel design for smoother line movement
• Soft-shackle friendly with no sharp rope contact edges
• Compact, solid, built for real-world use

Reduced Heat on Long Pulls

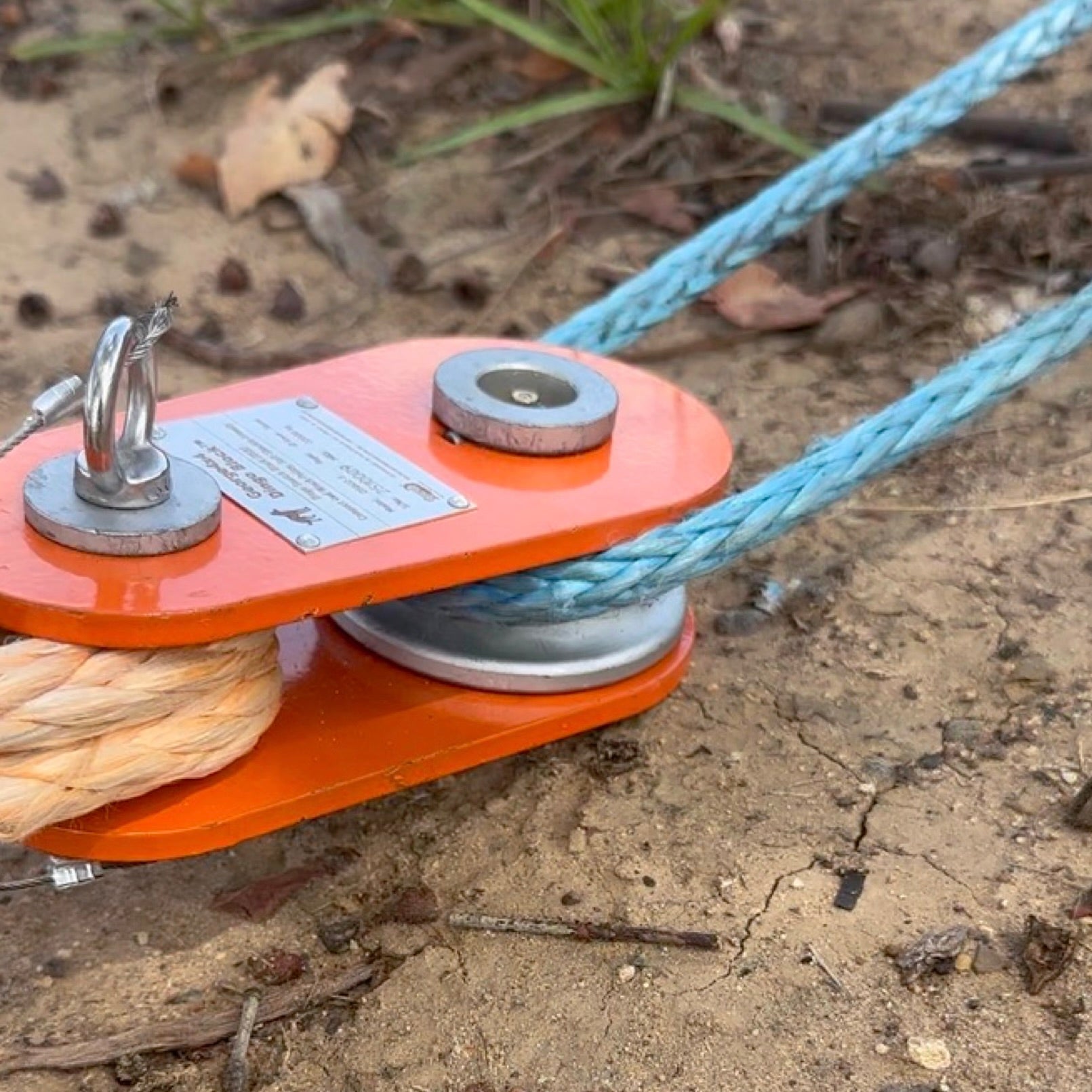

Unlike static winch rings that rely on friction, the Dingo Block uses a rotating wheel system.

The wheel turns with the rope, supported by a greased bush bearing between the wheel and load pin.
This reduces friction build-up and helps keep temperatures lower during long or repeated pulls — protecting your synthetic rope over time.

Compatibility

DSB22-A (Aluminium Wheel)
Designed exclusively for synthetic fibre rope.
Weight: 1.65kg

DSB22-S (Steel Wheel)
Suitable for steel cable and soft rope.
Weight: 2.15kg

⚠ Do not switch back to synthetic rope after using steel cable, as embedded particles may damage fibre rope.

Built for Real Recoveries

The Dingo Block isn’t showroom gear.

It’s built for recoveries where:
• Angles aren’t ideal
• Load cycles on and off
• Rope doesn’t sit perfectly

That’s when controlled rope behaviour matters most.

-------------------------------------------------------------

Quick Answers

✔ Works with synthetic rope & soft/steel shackles
✔ 22T MBS （ Tested 24ton)
✔ Rotating wheel reduces friction & heat
✔ Helps prevent rope slip-out under changing load
✔ Designed & tested in Australia

--------------------------------------------------------------------

Design Comparison & Features

by Out & About by Dayv

Frequently Asked Questions – George4x4 Dingo Block

What makes it different from a winch ring?

Winch rings rely on friction.
The Dingo Block rotates with the rope, helping reduce heat build-up and keeping the line more contained when angles change.

Is it soft shackle friendly?

Yes. The load pin design and rope contact surfaces are smooth and designed for synthetic setups.

Is it suitable for heavy vehicles?

Rated at 22T MBS, suitable for most 8,000–13,500 lb winches.
Larger models available for heavy-duty trucks.

Practical recovery details

• Safety wire on load pin – allows attachment of a safety rope if required

• Lightweight design

  • 1.66 kg (fiber rope version)

  • 2.15 kg (steel cable version)

•


⚙️ Specs:

Built for predictable rope control.
Designed and tested in Australia.
Ready for real-world winching.
