Dingo Block DSB22 + Soft Shackle Combo
A simple, properly matched setup for winch redirection and double-line pulls.

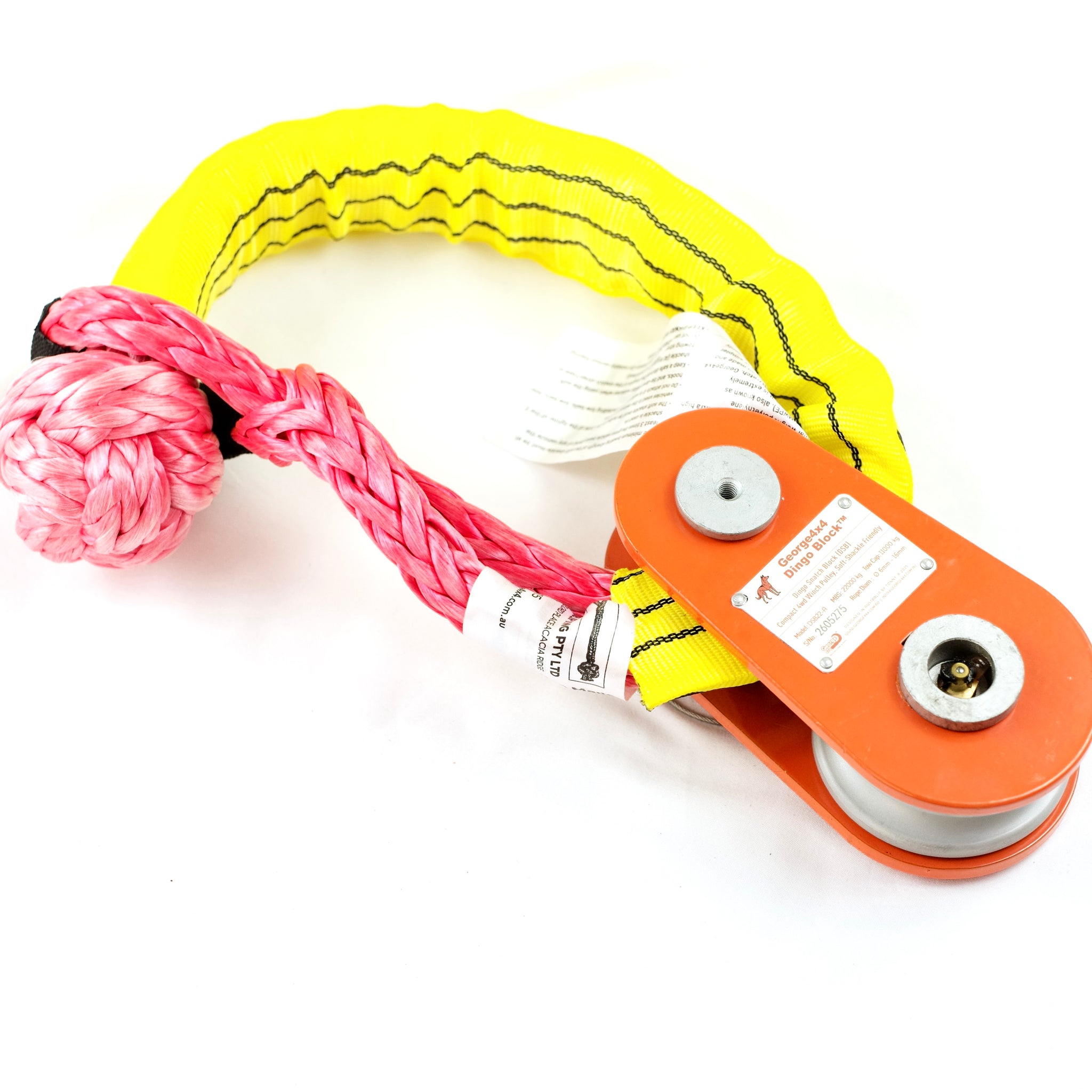

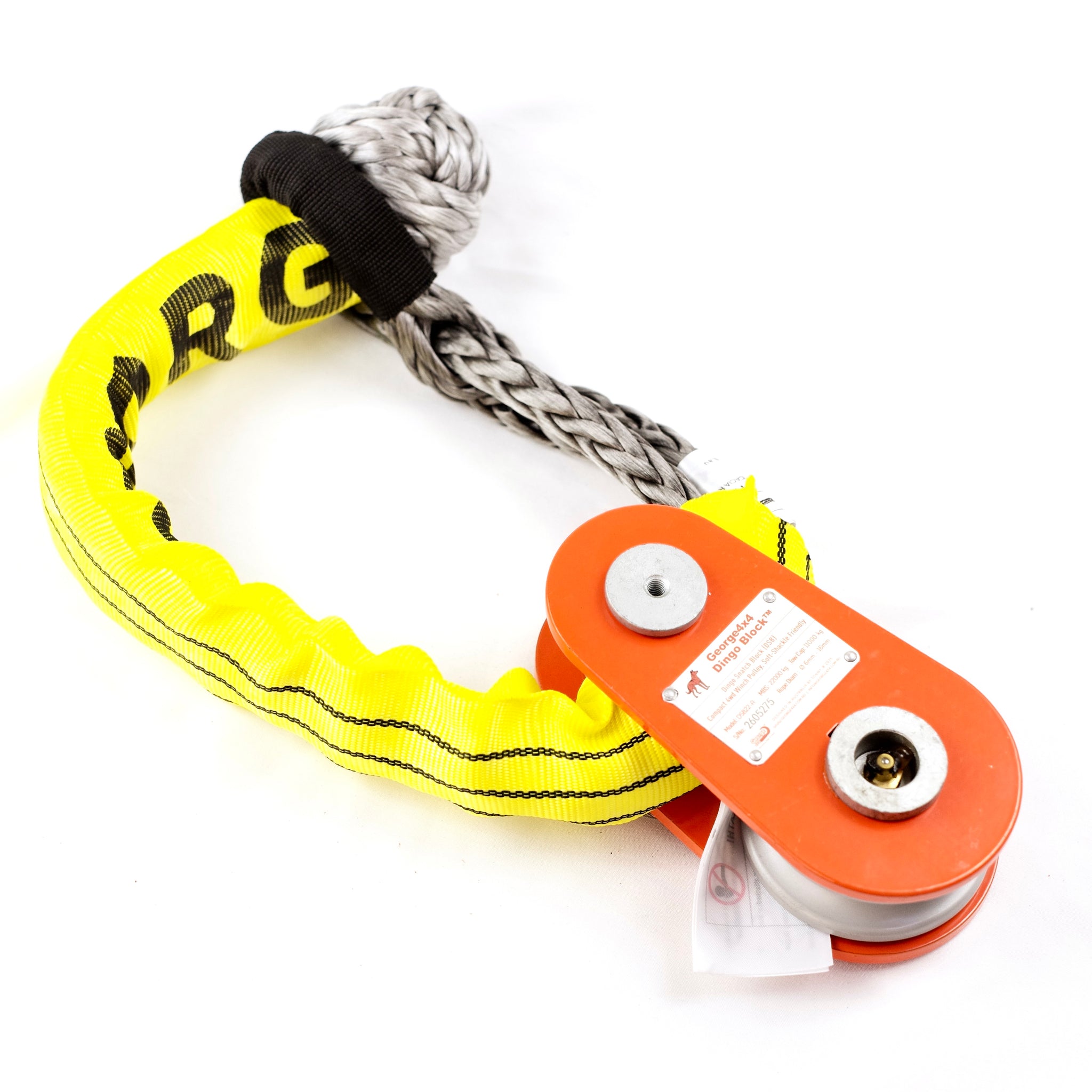

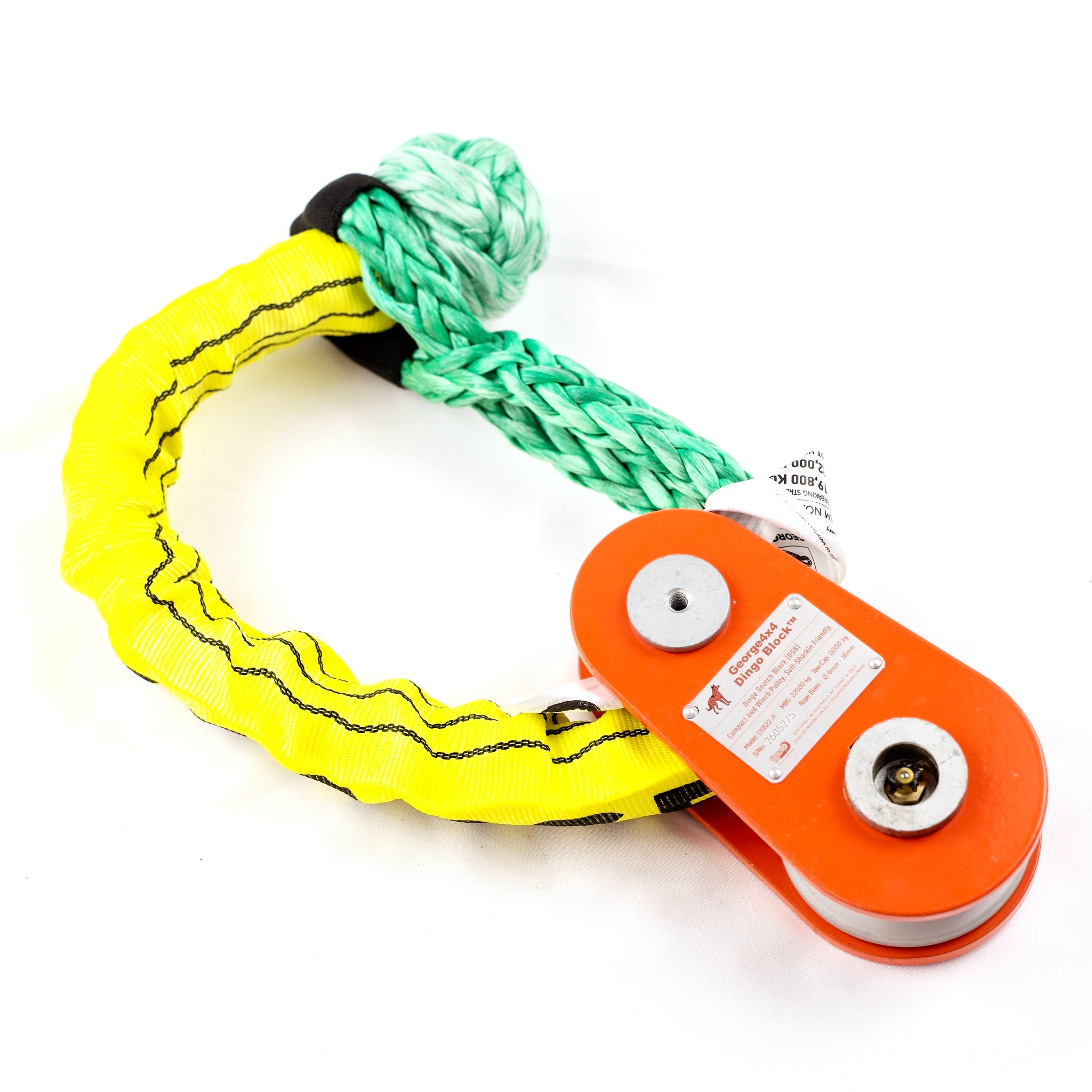

The Dingo Block DSB22 + Soft Shackle Combo is designed for real recovery situations where a straight pull isn’t possible, or where you need to change the direction of the winch line.
The Dingo Block uses a rolling sheave to guide the winch rope and reduce friction, while the selected soft shackle provides a strong and simple connection point.
Choose the soft shackle size to suit your winch capacity.
Built for Real Recovery.
Features of DINGO SNATCH BLOCK DSB22
-
Controlled winch line redirection under load
-
Suitable for double-line winching
-
Rolling sheave helps reduce friction and heat
-
Anti-slip, anti-flip-out line retention
-
Compact and lightweight design
-
Soft shackle compatible
-
Designed for synthetic winch rope
-
Suitable for regular 4WD, touring and commercial recovery use
Recommended Soft Shackle Selection
-
9,000 lb – 11,000 lb winches → 19,800 kg Soft Shackle
-
12,000 lb winches → 22,000 kg Soft Shackle
-
13,000 lb – 13,500 lb winches → 24,500 kg Soft Shackle
These recommendations are intended to provide a well-matched setup for normal recovery use.
Specifications
Dingo Block DSB22
-
Top sleeve: 30 mm
-
Sheave groove: 18 mm
-
Soft shackle compatible
-
Suitable for synthetic and steel winch rope
Soft Shackle Options
-
19,800 kg – Silver / Green
-
22,000 kg – Silver / Green
-
24,500 kg – Red
-
12-strand HMPE construction
Included
-
1 × Dingo Block DSB22
-
1 × Selected Soft Shackle
Important Note
All recommendations are based on new equipment in good condition.
Maximum winch pulling capacity is achieved on the first layer of rope on the drum. As additional layers build up, pulling power is reduced.
Using appropriately rated recovery equipment helps maintain a balanced recovery system and reduces unnecessary load on individual components.
