Dingo Snatch Block — DSB22

Keeps rope under control as load changes — no flip-out, compatible with soft and steel shackles, for smoother, worry-free winching.

Quick Answers

   Compatibility: Synthetic rope & soft shackles (steel cable via DSB22-S) Rating: 22T MBL — suits most 8,000–13,500 lb winches
Why Dingo Block: More controlled than a ring, lighter than traditional steel blocks

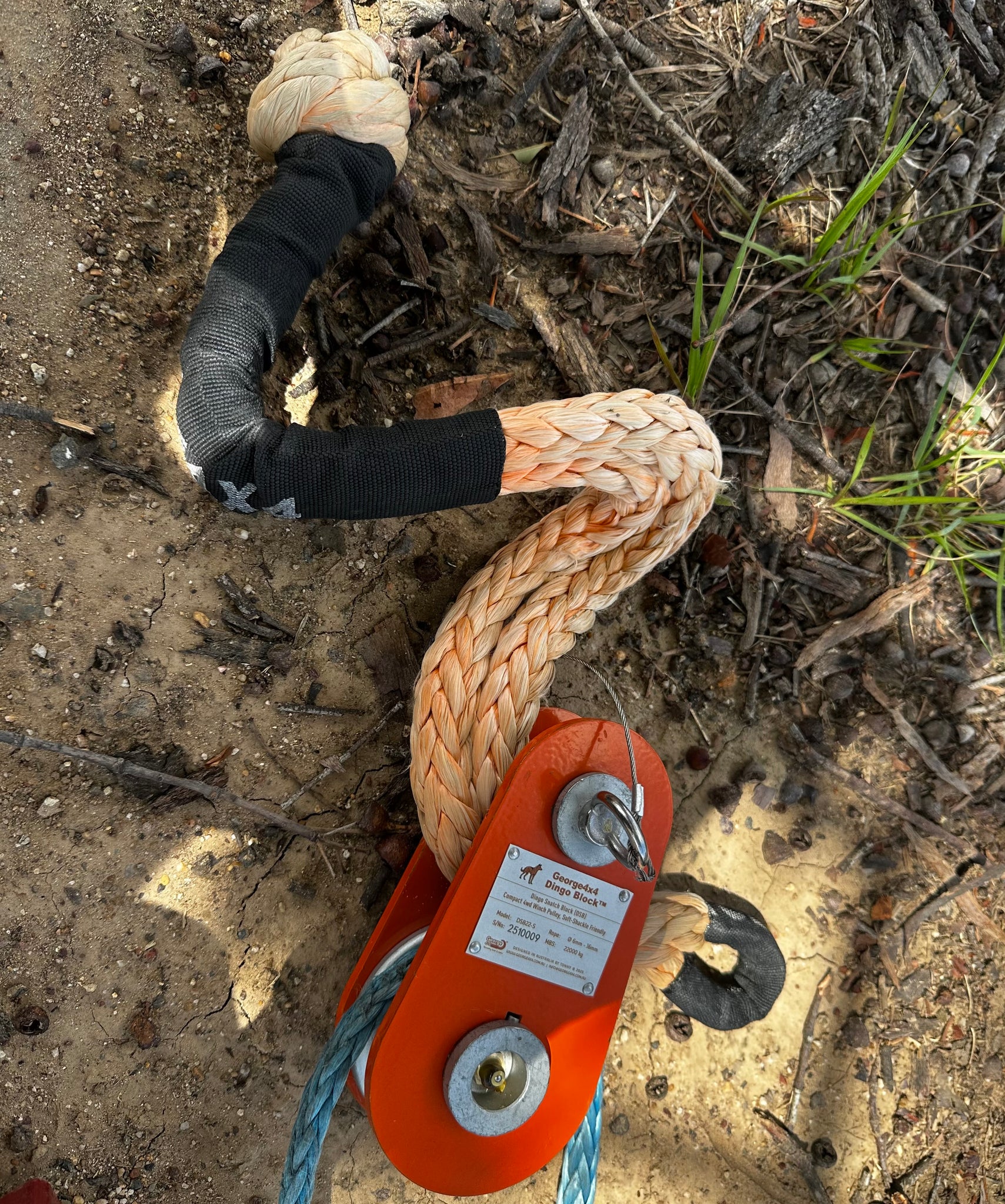

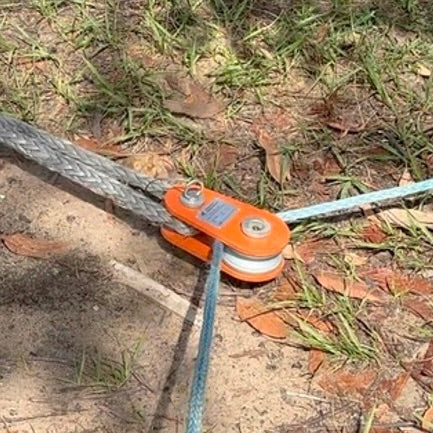

The Dingo Snatch Block( Dingo Block) is designed for real-world winching with modern rope-based recovery setups.

Rather than focusing on redirection or complexity, it focuses on keeping the rope under control as load builds and releases — making the winching process predictable when angles, tension, and setup aren’t perfect.

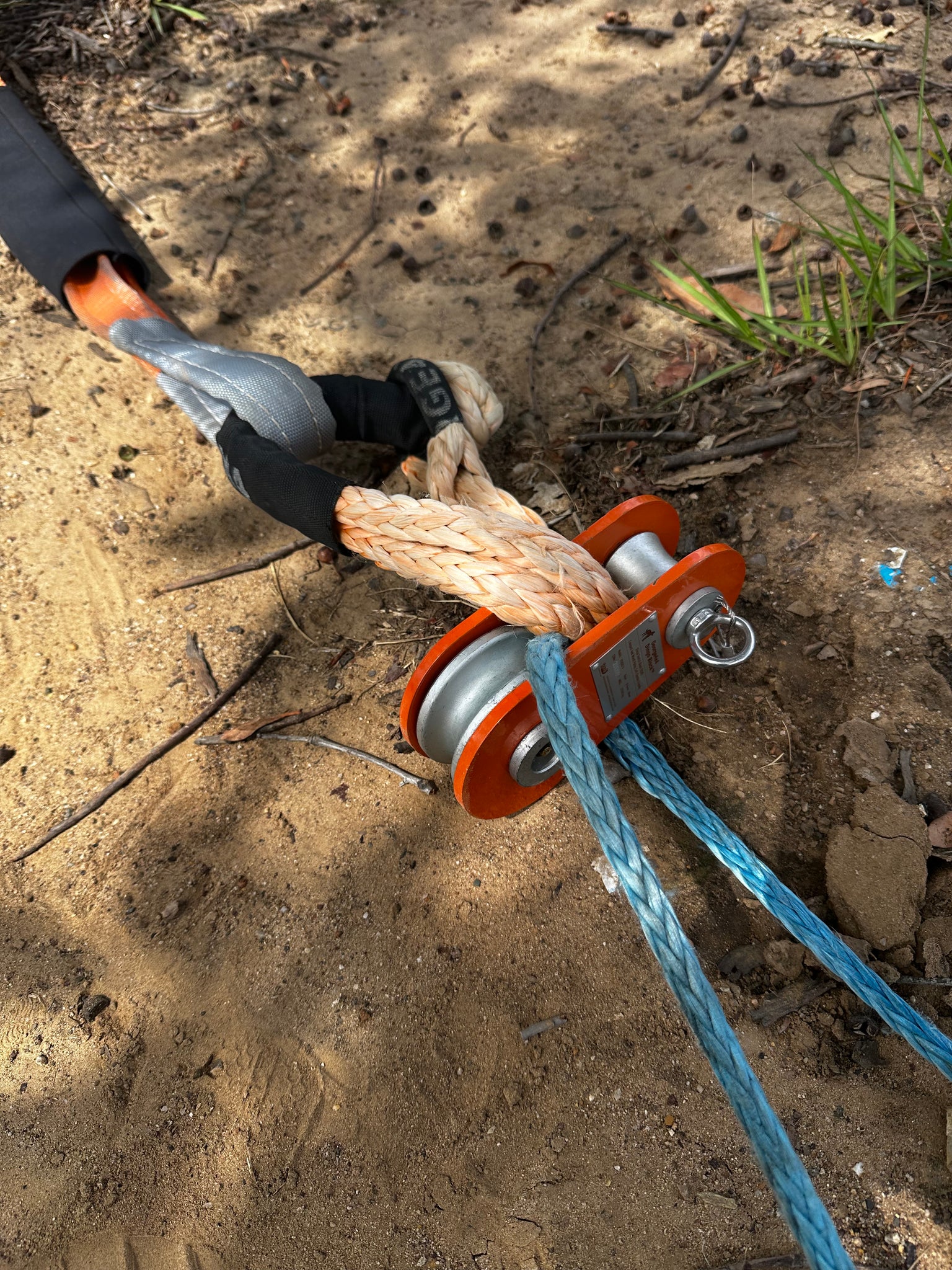

It works naturally with both soft and steel shackles, reducing the need to constantly monitor the line or worry about flip-out during the pull.

A bearing wheel design helps minimize friction and heat build-up compared to a winch ring, making it better suited for longer, continuous winching runs.

Model Options

DSB22-A
Aluminum wheel designed exclusively for fiber rope.
Weight: 1.66 kg

DSB22-S
Steel wheel.
Weight: 2.15 kg
Compatible with soft rope and steel cable.
If used with steel cable, do not subsequently use with fiber rope, as steel cable may damage the fiber.

Compact, lightweight, tough, and soft-shackle friendly.

The Dingo Snatch Block is designed to support efficient winching setups, featuring a greased bearing wheel that allows for long, smooth pulls under load.

Design Comparison & Features

by Out & About by Dayv

Frequently Asked Questions – George4x4 Dingo Block

Description & Features

Strength & construction

• Rated 22T MBS （Minimum breaking Strain)– engineered for heavy recovery loads

• Solid body design – compact, strong, Simple and built to handle real-world winching forces

Wheel & load control

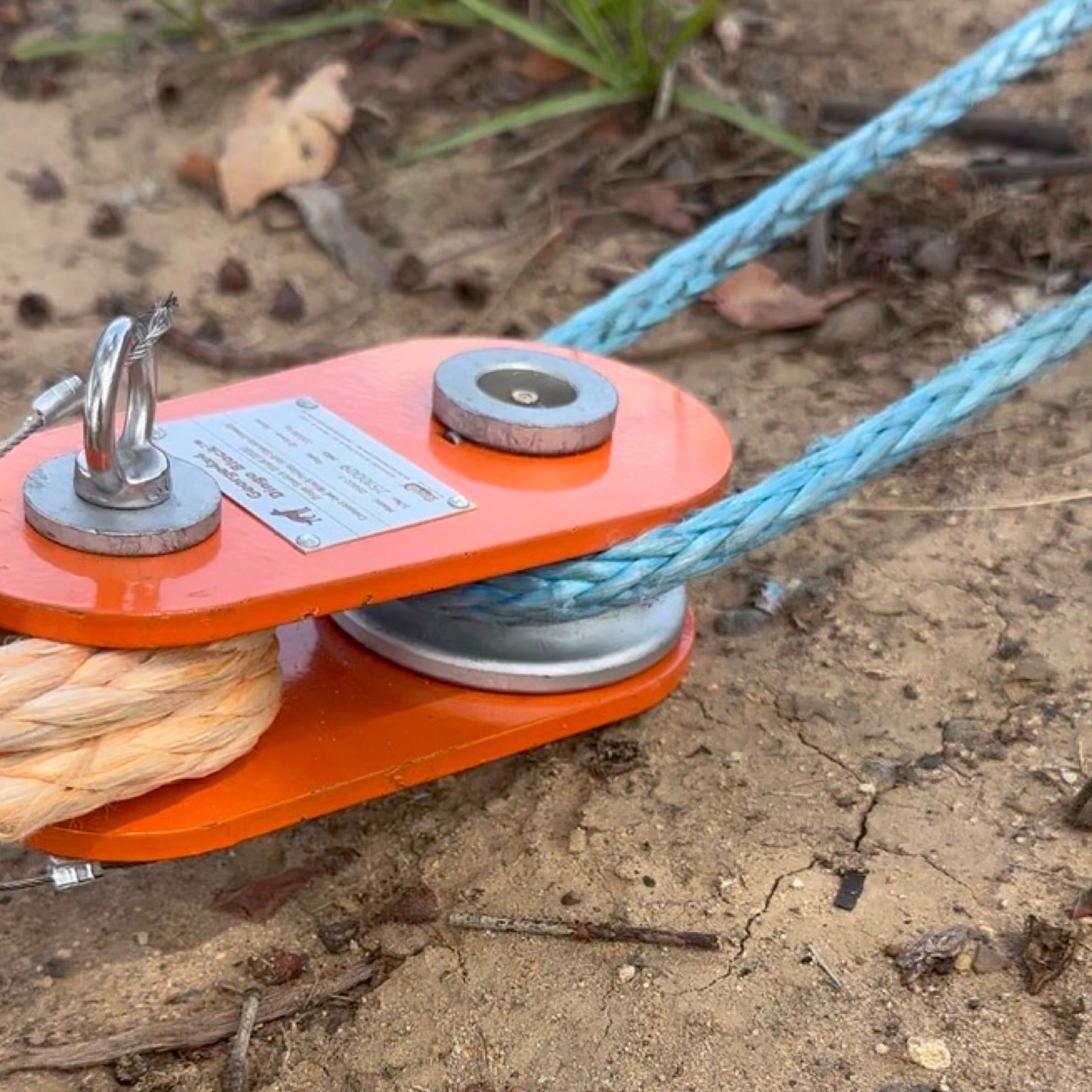

• Bearing-mounted wheel – allows the rope to rotate smoothly under load

• Greased bush bearing – supports consistent movement during long or slow winch pulls

• Low-friction design – helps reduce heat build-up over extended winching runs

Rope & shackle compatibility

• Soft-shackle friendly geometry – Rope-contact surfaces are smooth, with no sharp edges that could damage synthetic rope or soft shackles.

• Works with synthetic rope and steel cable
  Do not use with synthetic rope after steel cable use, as steel may damage fibers

Practical recovery details

• Safety wire on load pin – allows attachment of a safety rope if required

• Lightweight design

  • 1.65 kg (fiber rope version)

  • 2.15 kg (steel cable version)

Why choose the Dingo Block:

Lighter and more compact than traditional steel snatch blocks, while offering more controlled rope behaviour than a winch ring.

Built solid and tested in Australia for real-world recoveries — designed to work when conditions aren’t perfect.

⚙️ Specs:
